Microwave vs. Solid-State RF Energy Heating Ovens

microwave
solid state
rf energy
heating
oven

This article compares microwave heating ovens with solid-state RF energy heating ovens, highlighting the key differences between the two technologies. Solid-state cooking is poised to revolutionize microwave cooking due to its numerous advantages.

We’re all familiar with traditional microwave ovens, which rely on microwave heating for cooking. These appliances use a device called a magnetron that’s coupled with an antenna inside a closed cavity. A key limitation is that the excitation frequency within the cavity is fixed and cannot be altered.

Solid State RF-energy heating based cooking oven

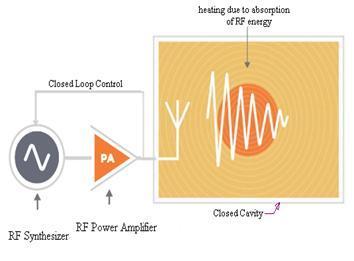

Figure-1: Solid State heating

Solid-state cooking ovens replace the magnetron with a synthesized signal source and a Power Amplifier (PA). This allows for precise control over the frequency, power, and phase of the excitation frequency. Figure 1 illustrates a solid-state oven with its core systems. Notably, RF frequencies used in solid-state ovens can start much lower than the microwave frequencies used in traditional microwave ovens.

Key Differences: Microwave vs. Solid State RF Heating

FeatureMicrowave Heating OvenSolid State RF Energy Heating Oven
Frequency range of operation300 MHz to 300 GHz3 KHz to 300 GHz
Excitation SourceMagnetronRF synthesizer and RF Power Amplifier
Turn table requirementNeeded to heat food evenlyNot needed; heating is homogeneous from all sides
Heating effectNon-homogeneous; cooks outer layersHomogeneous; cooks food evenly throughout
Frequency/power variationNot possiblePossible; frequency, power, and phase can be controlled to target specific areas within the cavity
Frequency sweepNot possible; fixed RF frequencyPossible with synthesized source
Fine control of cookingNot possiblePossible; allows for cooking different types of food simultaneously (e.g., vegetarian and non-vegetarian dishes)

Conclusion

Solid-state RF energy heating offers significant advantages over traditional microwave heating, positioning it as the future of quality cooking. Its versatility extends beyond cooking, with potential applications in areas like automotive ignition, drying, tumor ablation, and plasma lighting.
