Watchdog Timer: Enhancing Reliability in Embedded Systems

A watchdog timer (WDT) is a vital component in many microcontroller-based embedded systems. It’s essentially a timer that monitors the operation of a microcontroller or a microcontroller-based system. Its main job is to reset the microcontroller if it becomes unresponsive or gets stuck in an infinite loop. This ensures the system’s reliability and fault tolerance. It’s a mechanism that helps the microcontroller reboot (or restart) when the software hangs due to external or internal faults or issues.

It’s basically a hardware timer that should be serviced periodically by the software program; otherwise, it will generate a system reset. As shown in Figure 1, the microcontroller (ATmega328) is transmitting data to a device using the UART port. Here, the microcontroller transmits a character and waits for a character to be received by the device. If the character gets lost, the code hangs.

The watchdog timer helps to overcome this situation. The programmer will place a “clrwdt” instruction at regular intervals in the source code. This is a machine language instruction found in the instruction set of the PIC microcontroller. If this instruction doesn’t get executed in a particular time period (known as the timeout period), the microcontroller gets reset. Different registers and instructions are used for various microcontrollers to enable the watchdog timer.

The timeout period for the timer should be specified in the program, which is called the initialization of the watchdog timer. When the watchdog timer times out, it will cause a “RESET”. After this, the microcontroller executes instructions from memory location 0x0000.

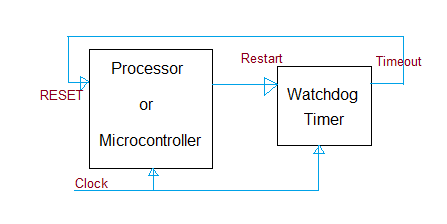

Figure 2 depicts the operation of the watchdog timer. The timer requires a clock for its hardware operation. This clock can be internal or external to the timer. The watchdog timer sends a reset signal to the processor/microcontroller when the timeout is reached. The timeout interval will vary based on the clock frequency. For a 16 MHz clock, the timeout interval is 92 ms.

Watchdog Timer Applications

Here are some applications of the watchdog timer:

• Mobile Phone: The display is turned off if no GUI interaction takes place within a watched time interval. This saves a good amount of battery power.
• Temperature Controller: If the controller takes no action to switch off the current within a preset watched time interval, the current is switched off, and a warning signal is raised as an indication of controller failure. Failure to switch off the current may burst a boiler in which water is heated.
• Software Hangs: If software hangs due to some bug/issue, it helps to reset the system automatically without any human interaction.

Watchdog Timer Advantages

The benefits of a watchdog timer in a microcontroller embedded system are as follows:

• Fault Tolerance: It helps ensure that the microcontroller-based system continues to operate reliably, even if there are software or hardware faults that could otherwise lead to system lock-ups.
• Recovery from Faults: When a fault occurs and the watchdog timer triggers a reset, the system has a chance to recover and start fresh. This can be especially crucial in safety-critical applications.
• Stability: It prevents a microcontroller from getting stuck in an infinite loop or hanging due to software bugs or unexpected conditions, thereby increasing system stability.
• Real-Time Monitoring: The watchdog timer is a form of real-time monitoring that provides a safety net for the microcontroller’s operation.
• Security: In some cases, the watchdog timer can be used to detect and respond to security breaches or tampering attempts by resetting the system when unexpected behavior is detected.

Conclusion

In summary, a watchdog timer is an essential component in many microcontroller-based embedded systems. It offers a safety mechanism to ensure that the system remains responsive and reliable, even in the face of faults or unexpected events. Proper configuration and periodic resetting of the watchdog timer are critical for its effective operation.
