Hall Effect Sensors: Advantages and Disadvantages

hall effect
sensor
magnetic field
advantages disadvantages
measurement

This page explores the advantages and disadvantages of Hall Effect Sensors, also known simply as Hall Sensors.

What is a Hall Effect Sensor?

Introduction:

The Hall Effect describes a phenomenon where, when an electric current flows through a conductor and a magnetic field is applied perpendicularly to the current, a voltage difference is produced across the conductor. This voltage difference arises because the magnetic field exerts a force on the moving charge carriers (electrons or holes), pushing them to one side of the conductor. This accumulation of charge creates the voltage difference, which is the “Hall Effect.”

Hall effect sensors leverage this principle. These sensors typically include amplifier circuitry and a sensing element. They often utilize an open collector output and a comparator (Schmitt trigger) to introduce hysteresis.

hall effect current sensing

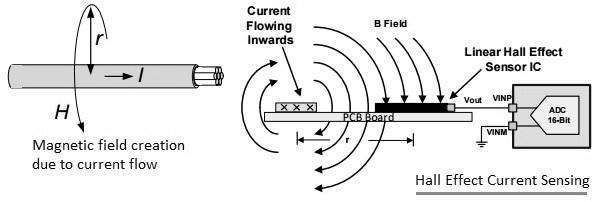

Figure 1 depicts Hall effect current sensing.

There are four main types of Hall Effect Sensors:

  • Unipolar Hall Sensor
  • Bipolar Hall Sensor
  • Omnipolar Hall Sensor
  • Linear Hall Sensor

Benefits or Advantages of Hall Effect Sensors

Here’s a breakdown of the benefits of using Hall Effect Sensors:

  • Robust Solid-State Components: Hall Effect Sensors are built using solid-state components, making them generally more robust and reliable than mechanical alternatives.
  • Miniaturization: They can be easily miniaturized, making them suitable for surface-mount applications where space is limited.
  • Low Cost: Hall Effect Sensors are readily available and typically quite affordable.
  • Fast Response & No Contact Bounce: They offer a fast response time and, being solid-state, don’t suffer from contact bounce issues seen in mechanical switches.
  • Extremely Durable: They are exceptionally durable, offering a virtually unlimited lifespan under normal operating conditions.
  • Immune to Dust and Dirt: Unlike optical switches, their performance is not significantly affected by dust or dirt.

Drawbacks or Disadvantages of Hall Effect Sensors

Despite their advantages, Hall Effect Sensors also have some drawbacks:

  • Requires Separate Magnet: They need a separate magnet to operate, which must be carefully positioned and mounted so it doesn’t interfere with other components.
  • Limited Open Collector Output: The open collector output is typically limited to around 20mA or less.
  • Vulnerable to Magnetic Fields: They can be susceptible to external magnetic fields, which can affect their accuracy and reliability.
