RFECG Sensor: Advantages and Disadvantages
This page covers the advantages and disadvantages of an ECG sensor, along with its basic functionality. It outlines the benefits and drawbacks of using an ECG sensor.
What is an ECG Sensor?
An ECG sensor, often used in conjunction with a machine, collects ECG data from a person. This entire system is often referred to as an ECG machine.
The recorded ECG curve helps identify abnormalities in the heart, aiding doctors in diagnosing heart conditions. ECG sensors measure heart rate (HR), heart rate variability (HRV), and other vital parameters.

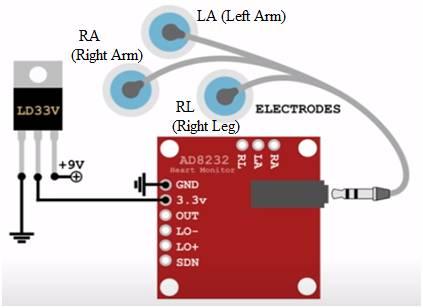

A simple ECG sensor example is the AD8232 module. Electrodes are attached to the AD8232 to capture electrical signals from the chest. At least three electrodes are typically needed to record a complete ECG. The AD8232 then produces an analog signal that represents the heartbeat. A microcontroller or Arduino Uno board can be used to display the ECG pattern. The AD8232 IC can be powered using a voltage regulator or directly from an Arduino board.
Benefits or Advantages of ECG Sensor
Here are the benefits of using an ECG sensor:
- Accuracy: It provides more accurate results compared to a PPG (photoplethysmogram) sensor.
- Speed: It delivers results more quickly due to its shorter settling time compared to PPG sensors.
- Size: The PCB footprint of an ECG sensor is generally smaller compared to that of a PPG sensor.
- Power Efficiency: ECG sensors typically consume less operating power than PPG sensors.
- No External Clock Needed: ECG sensors often have a built-in oscillator, eliminating the need for an external clock.
Drawbacks or Disadvantages of ECG Sensor
Here are the drawbacks of using an ECG sensor:
- Hair Removal: Shaving chest hair is often necessary to obtain a clear ECG signal waveform.
- Susceptibility to Interference: Electrical interference, muscle tremors, patient movement, or loss of electrode contact can introduce artifactual signals into the ECG. These signals are not caused by the heart’s electrical activity.
- Electrode Placement: Accurate electrode placement can be challenging, requiring careful attention to detail to achieve optimal results.
- Contact Quality: Poor electrode-to-patient contact can lead to poor ECG signal quality and potentially trigger false alarms.
- Cost: ECG sensors and monitors are often more expensive compared to PPG sensors.
