This document describes the Routing Area Update (RAU) procedure in an LTE system. RAU stands for Routing Area Update within the LTE network. We’ll cover both scenarios: RAU without a Serving Gateway (S-GW) change and RAU with an S-GW change.

RAU Procedure Without S-GW Change

RAU Procedure without SGW change

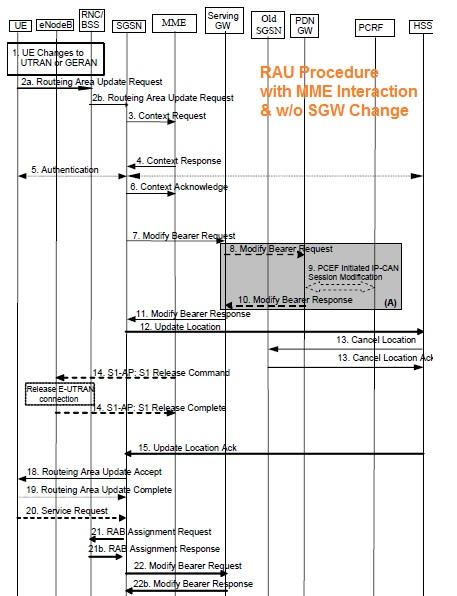

Figure 1: RAU Procedure without S-GW change

Figure 1 illustrates the message flow between the different entities within the E-UTRAN (Evolved Universal Terrestrial Radio Access Network) during a Routing Area Update procedure where the Serving Gateway remains the same.

RAU Procedure With S-GW Change

RAU Procedure with SGW change

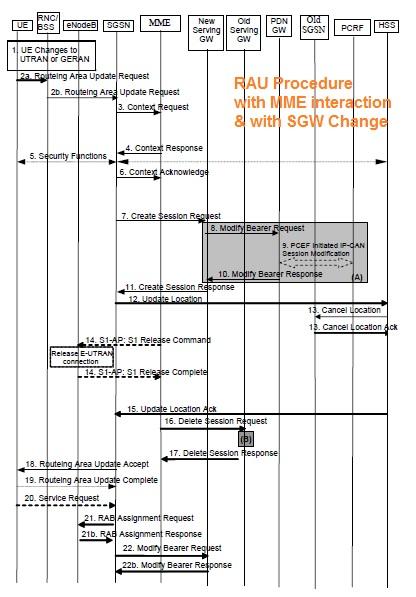

Figure 2: RAU Procedure with S-GW change

Figure 2 depicts the message flow between E-UTRAN entities during an RAU procedure when the Serving Gateway is changed.

REFERENCE: 3GPP TS 23.401 version 11.3.0 Release 11
