LTE-M CE Mode A vs CE Mode B: Coverage Enhancement Explained

This page delves into the differences between CE (Coverage Enhancement) Mode A and CE Mode B in LTE-M (Long Term Evolution for Machines), a technology designed for IoT (Internet of Things) devices. These modes were introduced in 3GPP Release 13 specifically to enhance coverage.

Introduction to LTE-M and Coverage Enhancement

LTE-M aims to provide a cellular communication solution tailored for IoT devices. To address the unique challenges of IoT deployments, particularly regarding coverage, LTE-M employs coverage enhancement techniques. These challenges include:

  • Complexity Reduction: LTE-M devices reduce complexity using techniques such as single antenna reception and lower maximum transmit power. However, these simplifications can degrade performance and lead to coverage loss compared to standard LTE.
  • Challenging Coverage Conditions: LTE-M devices often need to operate in environments with poor signal strength and require better coverage than regular LTE.

CE Mode A and CE Mode B are designed to overcome these challenges, offering different levels of coverage enhancement.

LTE-M CE Mode A

CE Mode A is designed to provide moderate coverage enhancement, offering a balance between performance and power consumption. Key features include:

  • Repetitions: Supports 32 subframe repetitions of the data channel (PDSCH and PUSCH). This repetition increases the probability of successful data transmission in poor signal conditions.
  • Bandwidth: PDSCH and PUSCH use a bandwidth of 1 to 6 PRBs (Physical Resource Blocks) in CE mode A.
  • Coverage Enhancement: Offers sufficient CE to compensate for simplifications implemented by low-cost LTE-M devices. It also provides some additional CE beyond normal LTE coverage.
  • Optimization: Optimized for moderate CE, achieved through a relatively small number of repetitions.
  • SRS Transmission: Supports both periodic and aperiodic SRS (Sounding Reference Signal) transmission. SRS helps the base station estimate the uplink channel quality.

LTE-M CE Mode B

CE Mode B provides a deeper level of coverage enhancement compared to Mode A, suitable for more challenging environments. Key features include:

  • Repetitions: Supports 2048 subframe repetitions of the data channel (PDSCH and PUSCH). The significantly higher number of repetitions offers improved robustness in extremely poor signal conditions.
  • Bandwidth: PDSCH uses a bandwidth of 4 to 6 PRBs in CE mode B. PUSCH uses a bandwidth of 1 or 2 PRBs.
  • Coverage Enhancement: Provides deep coverage compared to CE mode A, needed in more challenging coverage conditions.
  • Optimization: Optimized for substantial CE, achieved through a large amount of repetition.
  • Mode Support: If a device supports CE mode B, it also supports CE mode A.
  • SRS Transmission: Does not support SRS transmission, but will use shortened formats for PUSCH / PUCCH (Physical Uplink Control Channel).

MCS and TBS for PDSCH and PUSCH in LTE-M

Here are the tables illustrating Modulation and Coding Schemes (MCS) and Transport Block Size (TBS) values for PDSCH and PUSCH channels in LTE-M CE Modes A and B:

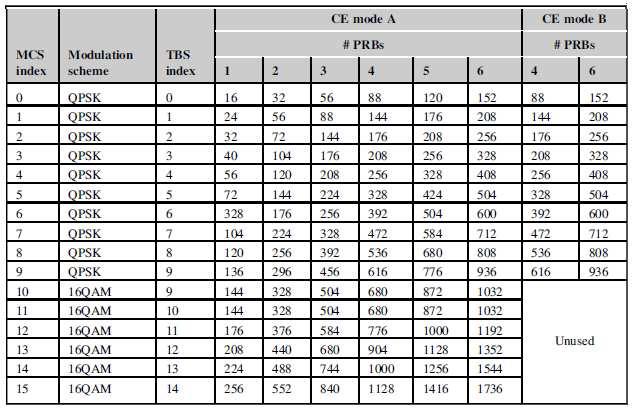

MCS-and-TBS-for-PDSCH-CE-Mode-A-and-Mode-B-LTE-M

Table-1: PDSCH Modulation and Coding Schemes and TBS in LTE-M

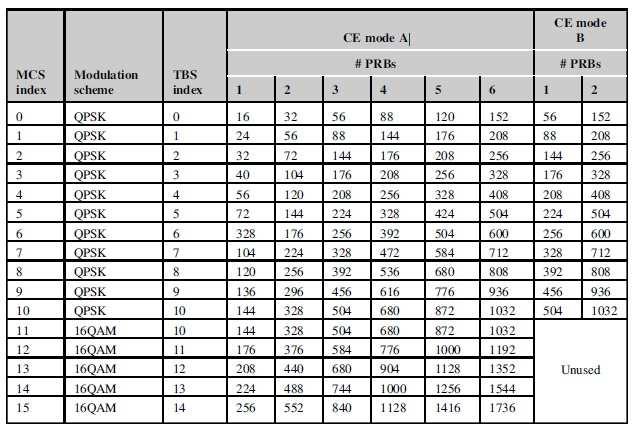

MCS-and-TBS-for-PDSCH-CE-Mode-A-and-Mode-B-LTE-M

Table-2: PUSCH Modulation and Coding Schemes and TBS in LTE-M

These tables show the different modulation and coding schemes and corresponding transport block sizes used for PDSCH and PUSCH in CE Mode A and Mode B, impacting the data rates and robustness of the connection.

Key Considerations for CE Mode Selection

  • All low-cost LTE-M devices (with categories Cat-M1 and others) must support CE mode A. Support for CE mode B is optional.
  • Devices operate in CE mode only when required to maintain connectivity, i.e., when they are outside the normal LTE coverage range.
  • When devices are within normal LTE coverage, they use normal LTE operation instead of CE mode, leveraging the high performance (low latency, high data rates) of standard LTE.
