This page outlines the functional differences between ECM and EMM, as used in LTE. In LTE technology, ECM stands for EPS Connection Management, while EMM stands for EPS Mobility Management.
• These are parts of NAS (Non-Access Stratum). • NAS is primarily used to transport non-radio signaling messages between the UE (User Equipment) and MME (Mobility Management Entity) in LTE. • NAS resides on top of the control plane in the protocol stack. • The procedures used in NAS are divided into two parts: EMM and ESM (EPS Session Management).

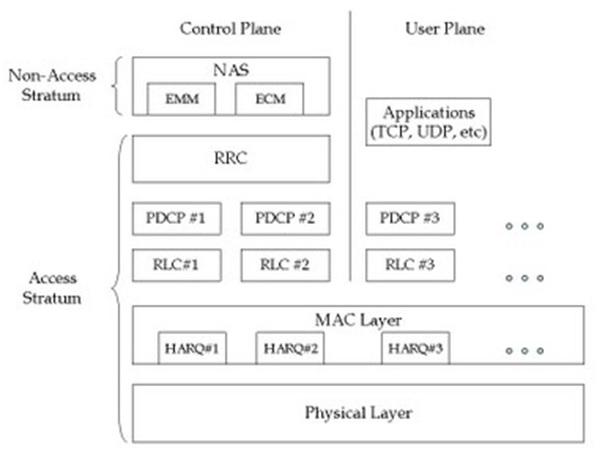

Figure 1: Location of NAS (ECM, EMM) in the LTE protocol stack.
LTE ECM | EPS Connection Management
• ECM stands for EPS Connection Management. • It manages the signaling connectivity between two LTE entities: the UE and the EPC (Evolved Packet Core). • There are two states in ECM: ECM IDLE MODE and ECM Connected MODE.

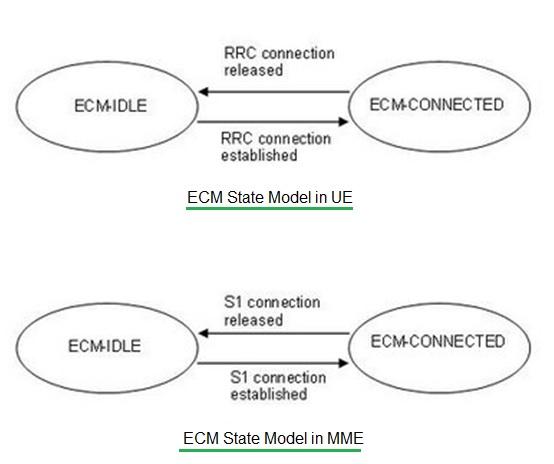

Figure 2: ECM states.
LTE EMM | EPS Mobility Management
• EMM stands for EPS Mobility Management. • EMM deals with mobility management procedures, such as the TAU (Tracking Area Update) procedure and the Attach procedure. • The EPS mobility management states are: EMM De-registered and EMM Registered.

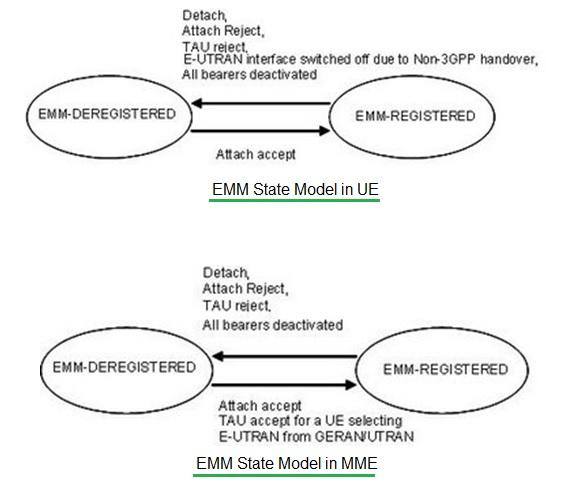

Figure 3: EMM states.
