Sensor Node (Mote) Basics: Block Diagram and Key Features

This page explains the basics of a Sensor Node or Sensor Mote, commonly used in Wireless Sensor Networks (WSN), along with a block diagram.

Sensor Nodes (or Motes) are fundamental components of a WSN. Key characteristics include:

• Self-organizing: They can automatically form a network.
• Long battery life: They are often designed to operate for extended periods without battery replacement.
• Limited capabilities: They have reduced functional and processing capabilities to conserve power.
• Low data rate: They are typically designed for applications with low data transmission requirements.

Sensor Node or Sensor Mote Block Diagram

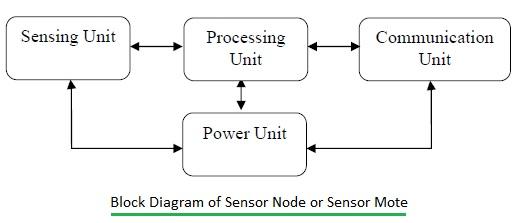

Figure 1: Block Diagram of a Sensor Node or Mote

The figure above illustrates the block diagram of a typical sensor node or mote. It comprises four primary units:

1. Sensing Unit
2. Processing Unit
3. Communication Unit
4. Power Unit

Let’s examine each of these in more detail:

Sensing Unit

This unit is responsible for interacting with the physical environment. It contains one or more sensors, chosen according to the application requirements. Common sensor types include:

• Thermal sensors (temperature)
• Vibration sensors
• Magnetic sensors
• Chemical sensors
• Light sensors

The sensing unit measures the desired external parameter using these sensors and sends the acquired data to the processing unit. If the sensor output is an analog signal, it’s first converted to a digital format using an Analog-to-Digital Converter (ADC) before being passed to the processing unit.

Processing Unit

The processing unit is the “brain” of the sensor node. It executes pre-defined instructions or programs to analyze and process the data received from the sensing unit. This is typically accomplished using a microcontroller or processor. Common choices include:

• ATMEGA-16
• MSP430
• ATMEGA-128L

The processing unit not only performs data analysis but also controls other units within the sensor mote. Different processors or controllers offer varying performance characteristics based on factors such as speed, memory, data rate, and the peripheral requirements of the system.

Communication Unit

After the processing unit has analyzed the data, the results are transmitted to a central Base Station using the communication unit. This unit typically consists of:

• An RF transceiver (transmitter/receiver)
• An antenna

The communication unit is responsible for transmitting and receiving small data packets. To maximize energy efficiency, the communication unit usually has multiple operating modes, including:

• Transmit mode
• Receive mode
• Idle mode
• Sleep mode

These modes allow the node to conserve power when not actively transmitting or receiving data.

Power Unit

The power unit provides the necessary electrical power to all other units within the sensor mote. This is typically achieved using a battery. Power management is a critical aspect of sensor node design, as it directly affects the node’s lifespan.

Features of Wireless Sensor Nodes (Motes) in WSNs

Wireless sensor nodes used in WSNs typically exhibit the following features:

• Failure-prone: They should be designed to handle unexpected failures gracefully.
• Mobility: They should be able to operate while moving within the network coverage area.
• Topology independence: They should be able to function in any network topology.
• Fault reporting: In case of communication failure, they should be able to inform the base station.
• Heterogeneous cooperation: They should be able to cooperate with other nodes in the network, even if the nodes are of different types (heterogeneous mode).
• Scalability: The network should be scalable to support hundreds or even thousands of sensor nodes.
• Autonomous operation: Each node should be able to work independently.
• Reprogrammability: Sensor motes or nodes should be re-programmable to allow for updates and changes in functionality.
• Energy efficiency: The sensors should provide maximum performance while consuming minimal power/energy.
