MQTT vs. HTTP: Differences and Bridge Functionality

mqtt
http
iot
protocol
bridge

Introduction

IoT devices often rely on two protocols, MQTT and HTTP, to connect and communicate with IoT cloud cores. To facilitate this communication, devices require either an MQTT bridge or an HTTP bridge, a configuration set during device creation in the device registry. This article compares MQTT and HTTP, highlighting their differences and explaining the functionalities of MQTT and HTTP bridges.

What is MQTT Bridge?

MQTT (Message Queuing Telemetry Transport) is a standard publish/subscribe protocol commonly used by embedded devices and for general machine-to-machine (M2M) interactions. It maintains a persistent, full-duplex TCP connection.

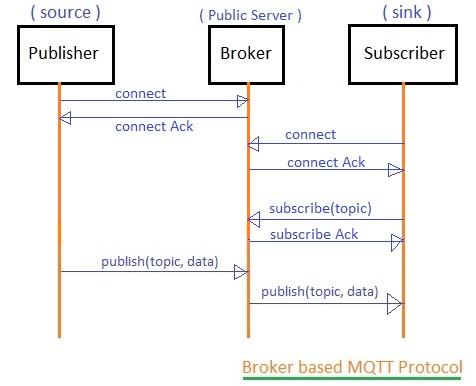

Broker based MQTT protocol

Figure 1 illustrates a simple broker-based MQTT protocol architecture.

Key features of the MQTT protocol include:

  • It operates over TCP.
  • It uses SSL/TLS for security.
  • It uses various messages like CONNECT, PUBLISH, SUBSCRIBE, and DISCONNECT.
  • It uses Username/Password authentication in the ‘connect’ message.
  • It encrypts the payload, meaning it is payload agnostic.
  • It typically uses port 1883.

MQTT protocol benefits:

  • Lower bandwidth usage.
  • Low latency.
  • High throughput.
  • Support for raw binary data.

What is HTTP Bridge?

HTTP (Hypertext Transfer Protocol) is a connectionless protocol. The HTTP protocol sends requests and receives responses, without maintaining a continuous connection with the cloud core. The cloud core supports specific versions of the HTTP protocol.

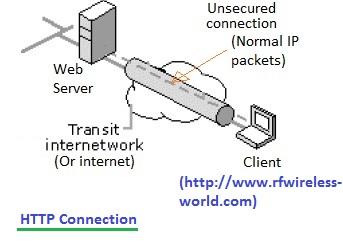

HTTP connection

Figure 2 shows an HTTP connection between a client (web user) and a web server.

HTTP uses standard IP headers for packet routing, and data isn’t encrypted before transmission.

Key features of the HTTP protocol include:

  • It is lightweight.
  • It presents fewer firewall issues.
  • In HTTP, binary data must be base64 encoded, increasing CPU and network resource usage.

Tabular Comparison: MQTT vs. HTTP

Both MQTT and HTTP bridges utilize public key device authentication and JWTs (JSON Web Tokens). In MQTT, the JWT is transmitted in the “password” field of the “CONNECT” message, while in HTTP, it’s sent in the “Authorization” header of the “HTTP Request” message.

Both protocols push telemetry events to the cloud using a Publish/Subscribe mechanism.

The following table highlights the differences between MQTT and HTTP protocols:

FeaturesMQTTHTTP
Full FormMessage Queue Telemetry TransportHyper Text Transfer Protocol
Design MethodologyData-centricDocument-centric
ArchitecturePublish/subscribe architectureRequest/response architecture
ComplexitySimpleMore complex
Data securityYESNO (HTTPS is used for security)
Upper layer protocolRuns over TCPRuns over UDP
Message sizeSmall, binary with 2-byte headerLarge, ASCII format
Device Connection StatusReportedNot reported
Service levels31
Libraries30KB C, 100KB JavaLarge
Port number188380 or 8080
Data distribution1 to 0/1/NOne to one

Conclusion

When choosing between MQTT and HTTP, carefully consider the specific requirements of your IoT application.

MQTT is excellent for scenarios requiring low latency, minimal bandwidth, and reliable message delivery. This makes it ideal for IoT devices, sensors, and real-time applications. Its lightweight design and efficient use of network resources make MQTT the preferred choice for constrained environments.

HTTP, with its widespread adoption and simplicity, is better suited for web-based applications prioritizing robust data exchange and compatibility with existing web infrastructure. However, it may be less efficient in terms of bandwidth and power consumption, which are critical factors for IoT deployments.
