This article compares Matter and Zigbee, highlighting their key differences, benefits, and drawbacks in the context of smart home systems.

Introduction

Zigbee and Matter are both protocols designed to integrate smart home devices into a unified system. They enable users to connect and control devices like lights, sensors, thermostats, and smart appliances, creating a cohesive and interconnected smart home ecosystem. Their wireless communication allows devices to communicate without physical wired connections.

Both Matter and Zigbee are designed to be energy efficient, minimizing power consumption and extending battery life while reducing energy costs. They use security mechanisms to ensure secure communication between devices, protecting user data and preventing unauthorized access. Matter is compatible with multiple networking technologies, while Zigbee is primarily known for its mesh topology.

What is Matter Protocol?

Matter (formerly Project CHIP, or Connected Home over IP) is an industry-wide protocol developed and managed by major technology companies like Google, Apple, and Amazon. It aims to establish a unified, open-source smart home connectivity standard, enhancing interoperability among various devices and platforms.

Matter utilizes existing protocols at the PHY/MAC layers and provides support for higher layers (Layer 3, Layer 4, and Layer 7).

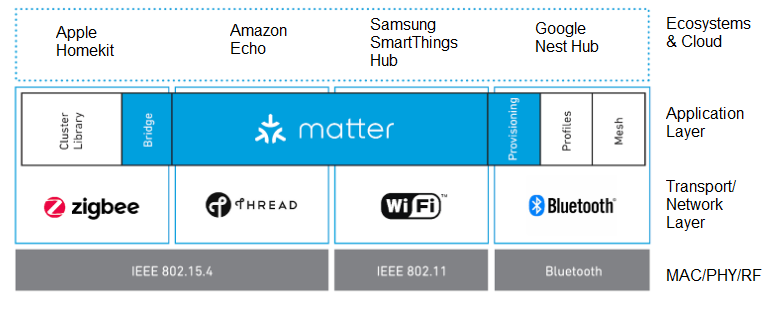

Matter Stack

Figure 1: Matter Stack with Different Protocol Layers

Key features and benefits of the Matter protocol include:

  • Utilizes IP-based communication for seamless integration.
  • Provides end-to-end encryption for secure communication.
  • Supports multiple networking technologies.
  • Emphasizes interoperability among different devices.

What is Zigbee Technology?

Zigbee is a low-power, low-data-rate wireless communication protocol designed for short-range communication between devices. Specified in the IEEE 802.15.4 standard, it is widely adopted in smart home applications.

Zigbee networks use a mesh topology, where multiple devices can function as routers to extend the network’s range. Once a Matter network is set up, Zigbee border routers are required to connect Zigbee devices to the Matter network.

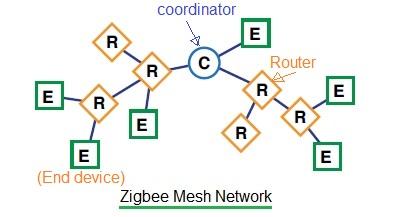

Zigbee Mesh Network

Figure 2: Zigbee Mesh Network Architecture

Key features and benefits of the Zigbee protocol include:

  • Robust mesh networking capabilities, which extend network range.
  • Low power consumption, extending battery life.
  • Proven security mechanisms for secure device communication.
  • Extensive ecosystem and compatibility among Zigbee devices.

Difference between Matter and Zigbee

The following table outlines the key differences between Zigbee and Matter concerning various parameters:

ParametersMatterZigbee
Operating OSI layersMatter specifications focus on higher layers of the OSI model above PHY and MAC. This includes the network layer (Layer-3) i.e. IPv6, Transport layer (Layer-4) i.e. UDP and Application layer (Layer-7).Physical layer (Layer-1), Data link layer (Layer-2) and Network layer (Layer-3)
FunctionEstablish interoperability among different devices and platforms.Provide interoperability among Zigbee devices.
Industry supportBacked by Apple, Google, Amazon, etc.Supported by various manufacturers and industry alliances such as the Zigbee Alliance.
TopologySupports multiple networking technologies such as Thread and IP.Primarily uses mesh networking topology.
ScalabilityDesigned to scale from small to large smart home systems.Suitable for small to medium-sized networks.
AuthenticationEmploys strong authentication mechanisms, such as public-key cryptography and certificates.Uses access control mechanisms, pre-shared keys, and device-specific keys for authentication.
Secure device provisioningIncludes provisions for secure device provisioning during onboarding to prevent unauthorized access.Uses network key establishment and authentication during the device joining process.
OTA (Over-the-Air) updatesSupports over-the-air updates for secure firmware updates.Not explicitly specified in the protocol, but manufacturers may provide update mechanisms.
