LoRaWAN Device, Service, and Routing Profiles Explained

This document outlines the different profiles used in LoRaWAN networks, specifically the device profile, service profile, and routing profile.

LoRaWAN Device Profile

The device profile describes the capabilities of a LoRaWAN end device. It also contains boot parameters that the Network Server requires to set up the radio access service for that device.

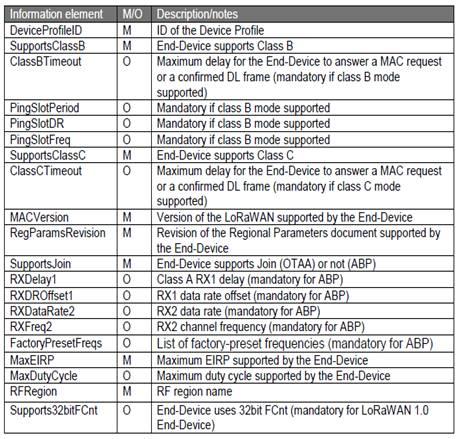

LoRaWAN Device Profile Table:

In the table above, “M” indicates that the parameter is “Mandatory” to include, and “O” indicates that the parameter is “Optional.”

LoRaWAN Service Profile

The service profile contains service parameters that the Network Server needs to:

• Set up the LoRaWAN radio access service.
• Interact with the Application Server.

LoRaWAN Service Profile Table:

LoRaWAN Routing Profile

The routing profile provides the Network Server with the information required to set up the data plane connection with the Application Server.

LoRaWAN Routing Profile Table:

Reference: LoRaWAN TM Backend Interfaces 1.0.3 Specification, available for download from www.lora-alliance.org.
