CPU vs DSP vs FPGA: Key Differences and Use Cases

Central Processing Units (CPUs), Digital Signal Processors (DSPs), and Field-Programmable Gate Arrays (FPGAs) are all processor types designed for specific applications and use cases. Let’s compare them to understand the differences.

CPU - Central Processing Unit or Microprocessor

• General-Purpose Processing: CPUs are designed for general-purpose processing tasks and are at the heart of most computing devices, including personal computers, servers, and mobile devices. They’re optimized for tasks like running operating systems, handling complex algorithms, and executing a wide range of applications.
• Architecture: CPUs have a complex architecture with a deep pipeline and various specialized units (ALU, FPU, control unit, etc.) to handle a broad spectrum of instructions and tasks.
• Programming Model: Programmed using high-level languages like C, C++, and Java. Operating systems provide an abstraction layer for managing resources and scheduling tasks.
• Flexibility: CPUs offer a high level of flexibility and are suitable for applications where the workload varies and requires adaptability.
• Performance: Generally provides good performance for a wide range of applications but might not be optimized for specific tasks like signal processing.
• Example: Intel Core i7 microprocessor.

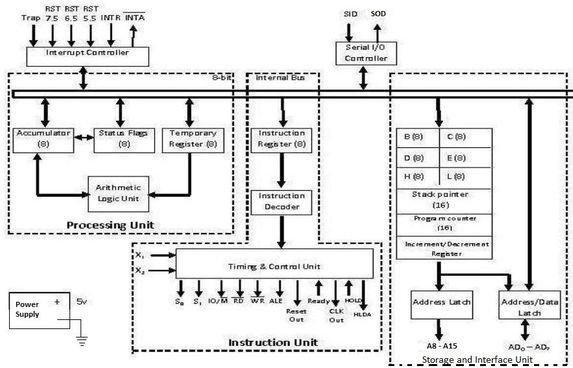

Figure 1: 8085 microprocessor (CPU) architecture.

Advantages of CPU:

• Versatility: CPUs are general-purpose processors capable of handling a wide range of tasks and applications.
• Ease of Programming: Programming for CPUs is typically done in high-level languages, making development more accessible.
• Resource Management: Operating systems manage resources, facilitating multitasking and resource allocation.
• Widespread Usage: CPUs are widely used in various computing devices, from personal computers to servers.

Disadvantages of CPU:

• Limited Specialization: May not be optimized for specific tasks, leading to suboptimal performance for certain applications.
• Limited Parallelism: Traditional CPUs may have limitations in parallel processing compared to specialized processors.
• Power Consumption: High-performance CPUs can consume more power, impacting energy efficiency in certain applications.

DSP - Digital Signal Processor

• Signal Processing: DSPs are specialized processors designed for efficiently processing digital signals, such as audio, video, and communications signals. They are optimized for tasks involving repetitive mathematical operations, such as filtering, convolution, and Fourier transforms.
• Architecture: DSPs have a more streamlined architecture focused on efficiently executing signal processing algorithms. They often feature parallel execution units, multiple accumulators, and specialized instructions for signal processing tasks.
• Programming Model: Typically programmed using low-level languages like assembly or higher-level languages with DSP-specific extensions. DSP-specific development tools and libraries are often used.
• Flexibility: Less flexible than general-purpose CPUs but highly efficient for specific signal processing tasks.
• Performance: Provides high performance for signal processing applications due to specialized hardware features and optimizations.
• Example: Texas Instruments TMS320C6748 DSP

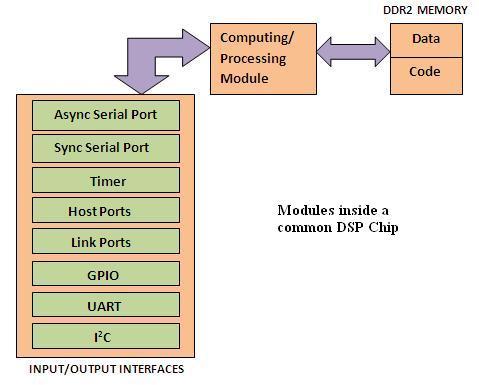

Figure 2: DSP architecture.

Advantages of DSP:

• Specialized Processing: DSPs are optimized for signal processing tasks, offering high performance in specific domains.
• Parallelism: DSP architectures often support parallel processing, enhancing the efficiency of signal processing algorithms.
• Efficient Algorithms: DSPs include specialized instructions and hardware features tailored for common signal processing operations.
• Low Latency: Suitable for real-time applications due to their ability to process data with low latency.

Disadvantages of DSP:

• Limited General-Purpose Use: DSPs are specialized and may not perform as well for general-purpose computing tasks.
• Programming Complexity: Programming for DSPs often requires knowledge of low-level languages and specific optimizations.
• Cost: DSPs designed for high-performance applications can be more expensive compared to general-purpose CPUs.

FPGA - Field Programmable Gate Array

• Configurability: FPGAs are hardware devices that can be programmed and reconfigured by users to implement custom digital circuits. They offer a high level of flexibility and can be tailored to specific applications.
• Architecture: FPGAs consist of configurable logic blocks (CLBs), interconnects, memory blocks, and other specialized resources. Logic circuits are defined by the user in a hardware description language (HDL) and then synthesized into a configuration bitstream.
• Programming Model: Programmed using HDLs like Verilog or VHDL, which describe the hardware functionality. Users define the logic circuits and the interconnections between them.
• Flexibility: Highly flexible and suitable for applications with rapidly changing requirements or those that benefit from hardware acceleration.
• Performance: Can achieve high performance for specific tasks, especially when parallelism and hardware acceleration are crucial. May have a steeper learning curve for design compared to CPUs and DSPs.
• Example: Xilinx Virtex UltraScale+ FPGA.

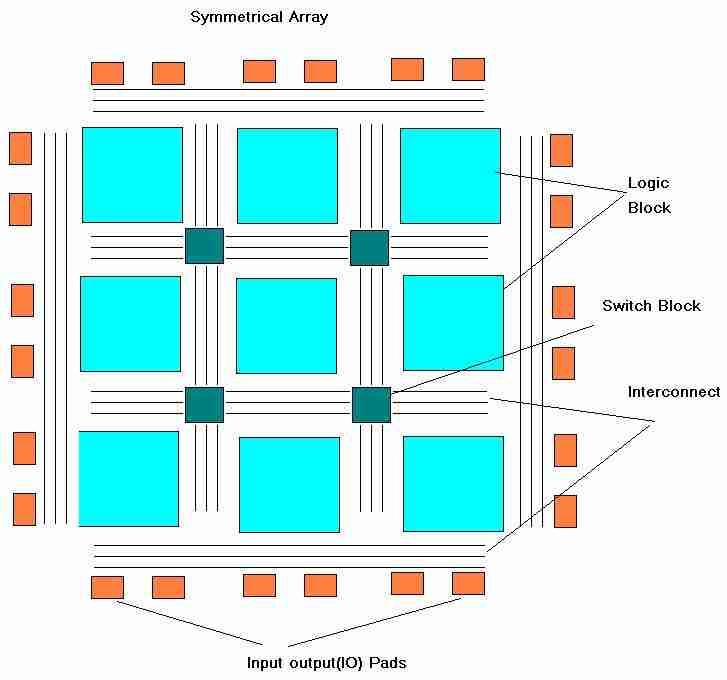

Figure 3: FPGA Architecture.

Advantages of FPGA:

• Customization: FPGAs allow users to create custom digital circuits tailored to specific applications, offering a high degree of flexibility.
• Parallelism: FPGAs excel in parallel processing, making them suitable for tasks requiring massive parallelism.
• Hardware Acceleration: Well-suited for hardware acceleration, enhancing performance for certain algorithms and computations.
• Reconfigurability: FPGAs can be reprogrammed, allowing adaptation to changing requirements or the implementation of different functionalities.

Disadvantages of FPGA:

• Complexity: Designing for FPGAs requires expertise in hardware description languages (HDLs) and can have a steeper learning curve.
• Cost: FPGAs can be more expensive than general-purpose CPUs, especially for large-scale applications.
• Power Consumption: Depending on the configuration, FPGAs may consume more power compared to dedicated ASICs in certain scenarios.

Difference between CPU DSP FPGA

Table 1 provides a comparison between CPU, DSP, and FPGA.

Difference between CPU and FPGA

Table 2 mentions the difference between CPU and FPGA.

Difference between DSP and FPGA

Table 3 mentions the difference between DSP and FPGA.

Conclusion

In summary, CPUs are versatile and general-purpose, DSPs are specialized for signal processing, and FPGAs provide flexibility through hardware customization. The choice among CPU, DSP, and FPGA depends on the specific requirements and the nature of the computational tasks in a given application.
