This page explains the basics of WSS used in the fiber optic domain.

The full form of WSS is Wavelength Selective Switch. It’s an optical device, a circuit pack that performs the following functions:

  • Wavelength Switching
  • Optical Power Control for ROADM (Reconfigurable Optical Add Drop MUX)
  • Optical Power Control for Wavelength Switch Nodes.

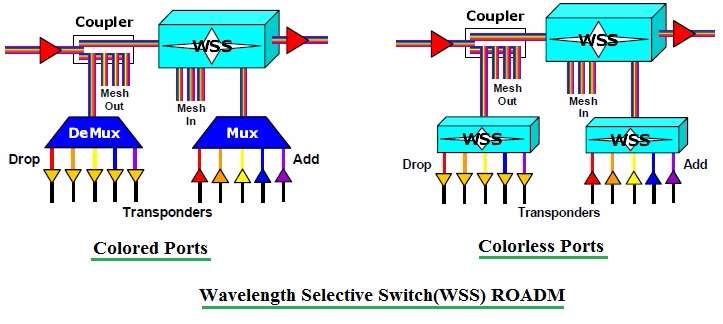

Wavelength Selective Switch-WSS ROADM

Figure depicts a WSS of a degree-4 node type.

For mesh connectivity, a 1 x 5 WSS with a degree-4 node is typically used. It supports ring-to-ring interconnection. Three WSS units are required for each degree to support mesh connectivity as well as colorless ADD/Drop ports.
