SPM vs CPM vs FWM: Understanding Optical Nonlinear Refractive Effects

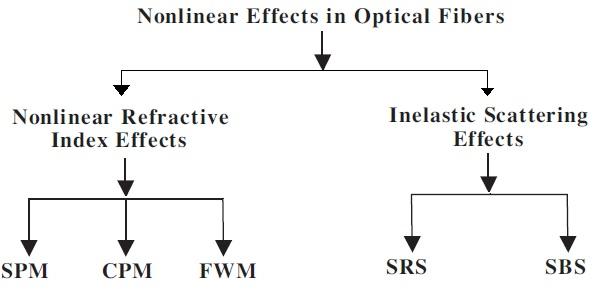

This article dives into the world of optical nonlinear refractive effects, comparing and contrasting Self-Phase Modulation (SPM), Cross-Phase Modulation (CPM), and Four-Wave Mixing (FWM). Nonlinear effects in optical fibers arise primarily due to:

• Changes in the refractive index of the medium with optical intensity.
• Inelastic scattering phenomena.

These nonlinear refractive index effects are categorized as SPM, CPM, and FWM. Inelastic scattering effects include Stimulated Raman Scattering (SRS) and Stimulated Brillouin Scattering (SBS).

Comparison of SPM, CPM, and FWM

The following table highlights the key differences between SPM, CPM, and FWM:

Explanation of Terms

• Nonlinear Susceptibility ($\chi^{(3)}$): A material property that describes the degree to which the material’s polarization responds nonlinearly to an applied electric field. It’s fundamental to understanding these effects.

• Phase Shift: A change in the phase of an optical wave as it propagates through a medium. This can affect the signal’s characteristics.

• Bit Rate Dependency: How the effect is influenced by the data transmission rate.

Key Differences Explained

• SPM: In SPM, a pulse experiences a phase shift due to its own intensity. The higher the intensity, the greater the phase shift. This leads to spectral broadening of the pulse.

• CPM: In CPM, the phase of one optical signal is modulated by the intensity of another co-propagating signal. This is useful for various applications like optical switching and wavelength conversion.

• FWM: FWM involves the generation of new frequencies due to the interaction of multiple waves within the nonlinear medium. It can lead to signal degradation if not properly managed, but can also be used for useful applications like optical parametric amplification.
