This page explains the basics of optical transceivers and their function within a fiber optic network. The term “Transceiver” simply refers to any device that combines both transmitter and receiver functionalities in a single package.

The device that transmits and receives RF signals is known as an RF Transceiver.

Optical Transceiver

Similarly, the device that transmits and receives optical signals is known as an Optical Transceiver. Both ends of a fiber optic network will have one transceiver each to complete the chain. This is because each optical transceiver is composed of one transmitter and one receiver.

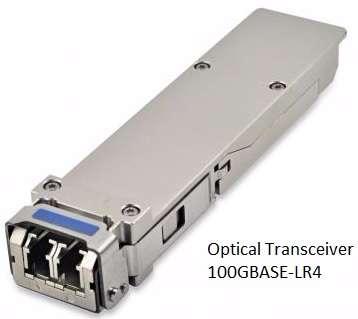

The figure above depicts an Optical Transceiver from Finisar Corporation. It boasts the following technical features:

  • It supports a bit rate of approximately 100 Gbps.
  • It has a power dissipation of less than 5 Watts.
  • It is used for 100 Gigabit Ethernet interfaces over a single-mode fiber cable.
  • It supports a maximum length of about 10 Km over single-mode fiber (SMF).
  • It has 4 x 25 G electrical interfaces.
  • It supports a 4 x 25Gbps LAN-WDM Transmitter.
