Glass Optical Fiber: Advantages and Disadvantages

This page explores the pros and cons of Glass Optical Fiber (GOF). It outlines the benefits and drawbacks associated with its use.

What is Glass Optical Fiber?

Introduction:

• A fiber optic system consists of three main components: a light source, a transmission medium, and a light receiver.
• Glass optical fiber serves as the transmission medium. It’s composed of a thin, hair-like dielectric material made of glass or silica, with a circular cross-section.
• The cable has three layers:
  • Core: The central part is the core, the medium through which light propagates.
  • Cladding: A layer surrounding the core.
  • Protective Jacket: The outermost layer provides protection.
• The core facilitates light propagation from one end to the other.

• GOFs are made of glass strands encased in a protective sheathing (e.g., stainless steel).

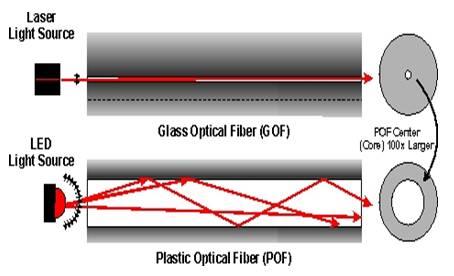

• Figure 1 (not included in the text but referenced) likely depicts the basic structure of a glass optical fiber.
• GOF typically operates in the infrared wavelength range.
• Light can travel over considerable distances because the cladding doesn’t absorb light from the core. Some light degradation occurs due to impurities within the glass.
• The base material for textile-grade glass optical fiber is silica (SiO2).

Refer to a separate resource (GOF vs POF) for the differences between glass optical fiber and plastic optical fiber.

Benefits or Advantages of Glass Optical Fiber

The following are the key advantages of using Glass Optical Fiber:

• Durability and Temperature Resistance: GOFs are durable and can withstand a wide temperature range (-40°F to +900°F). This makes them suitable for use in both high-temperature appliances (ovens, furnaces, condensers) and low-temperature environments (cold storage warehouses).
• Long Distance Communication: With a lower loss per kilometer (around 2.9 dB/km), it is preferred for long-distance communication applications.
• High Bandwidth Support: It can support the transmission of high-bandwidth signals, making it ideal for home networking solutions.
• Immunity to Interference: Glass optical fiber cables are immune to electromagnetic interference (EMI) and radio frequency interference (RFI).
• Thin and Lightweight: They are thin and light in weight, allowing for optimization in small spaces and targeted applications.

Drawbacks or Disadvantages of Glass Optical Fiber

Here are the primary drawbacks associated with using Glass Optical Fiber:

• Higher Cost: The cost of glass fiber is higher compared to plastic fiber. Additionally, the test equipment required is also more expensive.
• Difficult Light Coupling: Its core diameter is very small (approximately 0.062 mm), making it challenging to couple light efficiently into the core region.
• Installation Complexity: Installation and termination are more complex processes. Connectorization takes longer and demands specialized tools and training.
• Brittleness: Unlike flexible plastic fiber, glass fiber is brittle.
