DOCSIS 3.1 vs. DOCSIS 4.0: Key Advantages and Benefits

docsis cable internet data communication network technology broadband

This article explores the advantages and benefits of the DOCSIS 3.1 and DOCSIS 4.0 standards.

What is DOCSIS?

DOCSIS stands for Data Over Cable Service Interface Specification. It’s a set of standards managed by CableLabs, along with companies like Cisco, Broadcom, Intel, Netgear, ARRIS, and Texas Instruments. DOCSIS enables the transmission and reception of high-bandwidth data over existing cable TV networks, also known as Hybrid Fiber Coaxial (HFC) networks.

Here’s a quick rundown of the key features of different DOCSIS versions released so far:

  • DOCSIS 1.0 (1997): Initial cable broadband tech. Downstream: 40 Mbps, Upstream: 10 Mbps.
  • DOCSIS 1.1 (2001): Added Voice over IP (VoIP) service. Downstream: 40 Mbps, Upstream: 10 Mbps.
  • DOCSIS 2.0 (2002): Increased upstream speed. Downstream: 40 Mbps, Upstream: 30 Mbps.
  • DOCSIS 3.0 (2008): Enhanced capacity. Downstream: 1 Gbps, Upstream: 100-200 Mbps.
  • DOCSIS 3.1 (2016): Focus on capacity and efficiency. Downstream: 10 Gbps, Upstream: 1-2 Gbps.
  • DOCSIS 4.0 (2019): Symmetrical streaming and increased upload speeds. Downstream: 10 Gbps, Upstream: 6 Gbps.

DOCSIS has been widely adopted by cable operators globally to provide internet, voice, and video services over existing cable TV infrastructure.

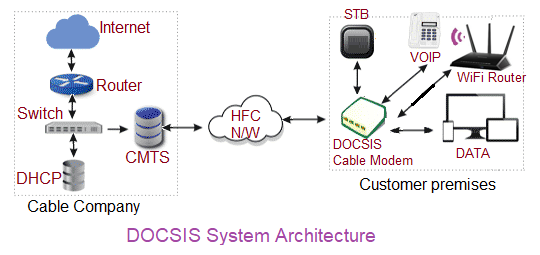

DOCSIS architecture

The diagram above illustrates a typical DOCSIS architecture. The DOCSIS cable modem (CM) acts as the interface between the HFC network (maintained by the cable company) and customer devices. This allows devices to connect to the internet. On the cable operator’s side, the Cable Modem Termination System (CMTS) connects the HFC network to the internet.

DOCSIS defines the messages and data types exchanged between the CM and CMTS. The network supports bidirectional IP data flow over existing HFC systems. Downstream refers to data flow from the cable company to the customer, while upstream refers to data flow from the CM to the cable company (CMTS).

What is DOCSIS 3.1?

Released in 2016, DOCSIS 3.1 offers a downstream data rate of 10 Gbps and an upstream data rate of 1 to 2 Gbps. It is primarily broadband-focused and leverages multi-channel QAM to map binary data and increase capacity.

It also utilizes OFDM to improve spectrum efficiency. The MAC layer includes enhancements that allow the CMTS to control bandwidth allocation, prioritize traffic, and support variable-length packets.

Benefits and Advantages of DOCSIS 3.1

  • Backward Compatibility: Seamless transition from DOCSIS 3.0.
  • Cost-Effective: Uses existing coax cable infrastructure, avoiding the need for new fiber installations.
  • Enhanced Security: New certificate-based security features prevent malicious firmware downloads and ensure secure software updates.
  • Reduced Latency: Improved packet queueing reduces packet latency, making it better for VoIP and online gaming.
  • Power Efficiency: Supports light sleep modes during idle periods to reduce power consumption.
  • Higher Throughput: Uses OFDM-based QAM, which allows more data bits to be mapped within the same frequency spectrum compared to DOCSIS 3.0, resulting in higher throughput and better spectrum efficiency.
  • Wider Frequency Spectrum: Allocates a higher frequency spectrum compared to DOCSIS 3.0 (5 MHz to 204 MHz upstream and 252 MHz to 1788 MHz downstream).

What is DOCSIS 4.0?

DOCSIS 4.0, also known as “Full Duplex DOCSIS,” is the latest standard. It significantly enhances the upstream speed compared to DOCSIS 3.0, offering a downstream speed of 10 Gbps and an upstream speed of 6 Gbps.

DOCSIS 4.0 utilizes higher bandwidth to support a larger data spectrum, resulting in lower latency and faster speeds. It allows the use of multi-gigabit symmetric services over HFC. This makes it suitable for applications like video conferencing, IoT, hard drive backups, distance learning, virtual reality, IoT cloud applications, healthcare, and home security cameras.

Benefits and Advantages of DOCSIS 4.0

  • Backward Compatibility: Compatible with previous DOCSIS versions, allowing for seamless transition from DOCSIS 3.1.
  • Symmetrical Multi-Gigabit Speeds: Delivers double the download speed and quadruple the upload speed compared to DOCSIS 3.1.
  • Low Latency: Offers similar low latency performance as DOCSIS 3.1, improving the experience for multimedia and online gaming applications.
  • Increased Security and Reliability.
