Understanding Permanent Magnet Synchronous Motors (PMSM)

A Permanent Magnet Synchronous Motor (PMSM) is a type of synchronous motor distinguished by having permanent magnets embedded in its rotor instead of traditional windings. These magnets generate a constant magnetic field that interacts with the rotating magnetic field created by the stator windings. PMSMs are popular in diverse applications thanks to their high efficiency, precise control capabilities, and compact size.

PMSM Motor Construction and Working Operation

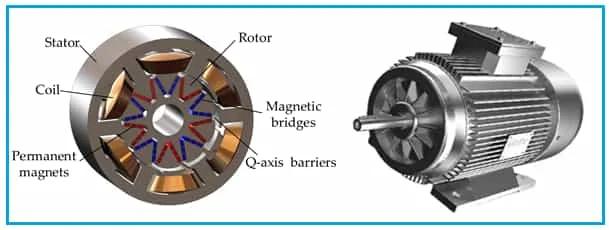

The construction of a PMSM consists of a stator with three-phase windings and a rotor fitted with permanent magnets. The stator windings are usually arranged in a sinusoidal distribution to generate a rotating magnetic field when energized with alternating current.

Let’s delve into how a PMSM motor operates:

• When three-phase alternating current is fed to the stator windings, it produces a rotating magnetic field. The rotor, containing the permanent magnets, is drawn to this rotating magnetic field created by the stator windings. Consequently, the rotor starts to rotate synchronously with the stator’s magnetic field.

• The term “synchronous” in Permanent Magnet Synchronous Motor highlights the fact that the rotor rotates at the same speed as the rotating magnetic field generated by the stator. This synchronous operation ensures efficient energy conversion and allows for precise control over the motor’s speed and torque.

• PMSMs are often controlled using sophisticated motor control algorithms like Field-Oriented Control (FOC) or Direct Torque Control (DTC). These advanced control techniques enable precise regulation of the motor’s speed and torque and facilitate smooth operation across a wide range of operating conditions.

Advantages of PMSM motor

PMSMs provide several advantages over other types of motors, including:

• High Efficiency: PMSMs boast high efficiency levels due to their synchronous operation and the absence of rotor losses (like those found in induction motors).

• Compact Design: The use of permanent magnets in the rotor allows for a compact and lightweight motor design with high power density.

• Precise Control: PMSMs can be controlled with high precision, making them ideal for applications that require accurate speed and torque control.

• Reduced Maintenance: Since PMSMs lack rotor windings, there’s less wear and tear, leading to lower maintenance needs.

PMSMs find widespread use in various applications, including industrial machinery, electric vehicles, robotics, HVAC systems, and renewable energy systems (such as wind turbines and solar trackers), where high efficiency, precise control, and reliability are paramount.

Conclusion

Overall, Permanent Magnet Synchronous Motors present a compelling combination of high efficiency, precise control, and a compact design, making them a preferred choice for many modern applications requiring electric motor drives.
