This page covers the advantages and disadvantages of NAND Flash memory compared to NOR flash. It highlights the benefits and drawbacks of using NAND Flash.
What is NAND Flash?
Introduction: FPGAs utilize various memory types to store configuration data, including serial NOR flash memory, parallel NOR flash memory, and NAND flash memory.
Image courtesy: Cypress Semiconductor Corporation (Now part of Infineon Technologies)

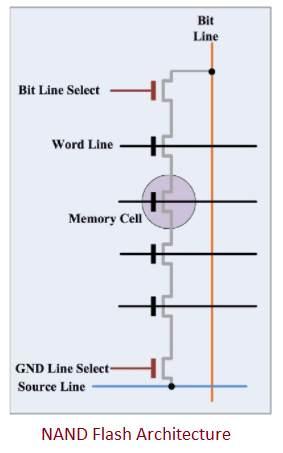

The illustration above shows the architecture of NAND flash memory. As you can see, several memory cells (around eight) are connected in series, resembling a NAND gate.
Benefits or Advantages of NAND Flash
Here are the key benefits of using NAND Flash:
- Low Cost Per Bit: NAND flash offers a lower cost per bit compared to NOR flash memory. This makes it a more economical choice for large storage capacities.
- Greater Capacity: NAND flash can achieve higher storage capacities than NOR flash.
- Faster Write and Erase Speeds: NAND flash provides faster write and erase speeds, making it more efficient for applications that require frequent data updates.
- Lower Power Consumption: During write, read, and erase operations, NAND flash consumes significantly less power.
- Preferred for Data Storage: NAND flash is generally preferred for data storage applications due to its cost-effectiveness and capacity.
Drawbacks or Disadvantages of NAND Flash
Despite its advantages, NAND Flash also has some drawbacks:
- Slower Random Read Speed: Compared to NOR flash, NAND flash offers slower random read speeds.
- Higher Standby Current: NAND flash exhibits higher standby current compared to NOR flash.
- Bit Flipping: Bit flipping is more common in NAND flash than in NOR flash, potentially leading to data corruption.
- Bad Block Development: The occurrence of bad blocks is more frequent in NAND flash memory, necessitating mandatory bad block handling procedures.
