IPS vs. VA vs. TN: Understanding LCD Modes

lcd
display
ips
va
tn

This article breaks down the differences between the three major LCD (Liquid Crystal Display) modes: IPS (In-Plane Switching), VA (Vertical Alignment), and TN (Twisted Nematic). LCDs utilize liquid crystals to create images, and the way these crystals are arranged and manipulated dictates the display’s characteristics.

An LCD consists of several key components: a light source, liquid crystals, a color filter, two electrodes, and glass plates on either side of the crystal. By varying the voltage applied to the electrodes, we can change the twist in the liquid crystal, thereby controlling the amount of light that passes through.

LCD cell components Figure 1: Major components in a typical LCD cell.

As the figure illustrates, a basic LCD structure includes alignment layers in contact with the crystal. The electrical connections are made with indium tin oxide, glass layers, and polarizing films. The three primary LCD modes differ based on how the liquid crystals rotate. These are IPS, VA, and TN.

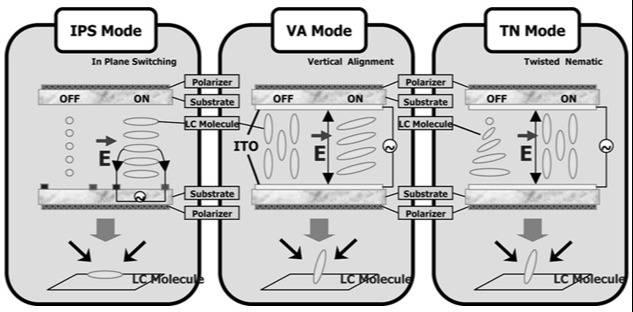

LCD modes - IPS mode, VA mode, TN mode Image Courtesy : ResearchGate GmbH

Let’s delve into each mode individually:

IPS (In-Plane Switching) Mode

  • In IPS LCDs, the crystals switch horizontally.
  • This design allows for wide viewing angles, meaning the image looks consistent even when viewed from the side.
  • IPS panels offer large color coverage, leading to more accurate and vibrant colors.
  • Generally, IPS LCDs come at a higher cost compared to other types.
  • IPS is often considered to offer the best overall performance.

VA (Vertical Alignment) Mode

  • In VA LCDs, the liquid crystals are aligned vertically to the glass substrate when no voltage is applied.
  • VA panels also provide wider viewing angles and larger color coverage, similar to IPS.
  • Like IPS, VA mode LCDs tend to be more expensive.

TN (Twisted Nematic) Mode

  • TN LCDs operate based on the “Twisted Nematic” effect. They don’t require continuous current flow.
  • The amount of twist in the liquid crystal dictates how much light is allowed to pass through.
  • TN panels use low operating voltages, making them suitable for battery-powered devices.
  • TN panels typically have narrower viewing angles, meaning the image quality degrades when viewed from the side.
  • They offer smaller color coverage compared to IPS and VA.
  • TN LCDs are more affordable, making them popular in the market.
  • TN panels boast the fastest response times among the three modes, which is beneficial for gaming and fast-paced video.
