Both UFS (Universal Flash Storage) and eMMC (embedded Multimedia Card) are used as embedded memory cards to store information in smartphones, tablets, and other mobile computing devices. UFS is the successor to the eMMC standard, used as embedded NAND flash memory.

Let’s delve into both eMMC and UFS, comparing them based on speed, performance, energy consumption, and other key parameters. This comparison guide between UFS 2.2 and eMMC 5.1 is crucial for selecting the best option for your device.

What is eMMC interface?

The term eMMC stands for Embedded Multimedia Card. It’s an advanced NAND flash memory used in mobile phones, tablets, eReaders, GPS devices, and other mobile computing devices. The latest eMMC standard is version 5.1. Previous versions include eMMC 4.5 and eMMC 5.0.

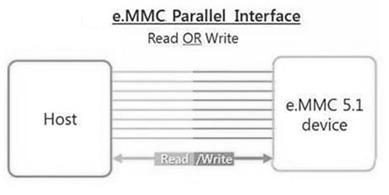

eMMC Interface

The eMMC card is very compact in size, smaller than a postage stamp. It’s used in smaller and thinner devices to offer better performance and power efficiency. eMMC supports half-duplexing, meaning reading and writing cannot be done simultaneously. With an eMMC card, either a read or write operation is supported. It uses a parallel interface with 8 I/O.

What is UFS interface?

UFS utilizes LVDS (Low Voltage Differential Signaling) serial high-speed interface. It supports full-duplexing, enabling read and write operations to be performed simultaneously.

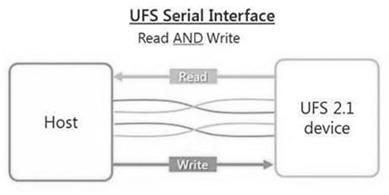

UFS Interface

UFS supports command queuing. This means the host system can send a series of both read and write commands to be operated on by the UFS device while the host system performs other tasks. There are various versions of UFS interfaces, including UFS 1.0, 1.1, 2.0, 2.1, 2.2, 3.0, and 3.1.

Refer to the difference between UFS2 vs UFS2.1 vs UFS3 vs UFS3.1 for more details.

Key Differences Between UFS 2.2 and eMMC 5.1

The following table highlights the key differences between UFS and eMMC interface types.

FeatureseMMC 5.1UFS 2.2
SpeedUp to 250 MB/s (read), 125 MB/s (Write)Up to 1200 MB/s (read), 290 MB/s (Write)
InterfaceParallel (x8)LVDS serial
Data transferHalf duplex (Either read or write)Full duplex (Both read and write at a time)
Command QueueLimited or no supportSupports command queue, enabling faster data processing
Data transfer speedSlower, more suited for basic tasksFaster, suitable for high-performance tasks
Random Read (IO/s)Less (~7000) as per eMMC 5.0 versionMore (~19000) as per UFS 2.0 version
Random Write (IOP/s)Less (~13000) as per eMMC 5.0 versionMore (~14000) as per UFS 2.0 version
Latency (i.e. data transfer time)HigherLower
PerformanceLowHigh
Power ConsumptionMoreLess
BandwidthLowerHigher
TechnologyBased on older eMMC architectureBased on SCSI architecture, enabling higher performance
Support for multiple appsLimited performance in multi-tasking scenariosBetter support for running multiple applications simultaneously
PriceGenerally more affordableTypically more expensive due to advanced technology

The values in the table are with respect to eMMC 5.1 and UFS 2.2 as per comparison done by a popular company for its memory devices.

Summary

UFS 2.2 offers faster read and write speeds, enhanced energy efficiency, and better multitasking capabilities compared to eMMC 5.1, making it the preferred choice for high-performance smartphones and tablets. Meanwhile, eMMC 5.1 remains a cost-effective and reliable solution for budget devices, despite its slower performance.

Also, refer to the advantages or benefits of the UFS storage interface over eMMC.
