Understanding Bluetooth Technology: Basics, Advantages, and Applications

Introduction

Bluetooth is a wireless communication technology that facilitates the transfer of data and voice between devices over short distances. Operating in the 2.4 GHz ISM band, it enables seamless connectivity for personal and professional use. With applications ranging from wireless audio devices to IoT systems, Bluetooth has become a cornerstone of modern connectivity.

In this guide, we’ll explore the basics of Bluetooth, its advantages, disadvantages and key applications. It is used for data communication between wireless devices. It works for short distances and used for low power applications.

It uses ISM band 2400 to 2480 MHz, hence bluetooth has become very popular throughout the world. Bandwidth of each physical channel is about 1 MHz, which gives US and most part of europe total of 79 channels in 2.4 to 2.4835 GHz frequency band. The technology is used by wireless Personal Area Network devices and is as per IEEE 802.15.1 standard specifications. Bluetooth support both voice and data applications making it further popular.

Modulation scheme used in baseband is GFSK. Frequency hopping is also employed to avoid effect of multipath.

Bluetooth technology allows about 8 devices to communicate within coverage of about 10 meters. With latest class of bluetooth devices, distance coverage of about 100 meters can be achieved. There are various versions of Bluetooth devices, version 1.0 supports about 1 Mbps and version 2.0 supports about 3 Mbps data rate.TDD-TDMA access method is used by bluetooth devices. The figure depicts basic bluetooth network of multiple devices.

A Bluetooth piconet is a small network where one device acts as the master, controlling communication, and up to seven devices act as slaves, following the master’s instructions. Multiple piconets can interconnect to form a scatternet, where a device can serve as a slave in one piconet and a master in another, enabling broader and more flexible Bluetooth communication. This hierarchical structure allows seamless data exchange across devices in close proximity.

Key Features of Bluetooth

1. Wireless Communication: Eliminates the need for cables to connect devices.
2. Short Range Connectivity: Operates within a limited range, ideal for personal and localized use.
3. Low Power Consumption: Optimized for battery powered devices, making it energy efficient.
4. Universal Compatibility: Supported by a vast range of devices, including smartphones, laptops, headphones and IoT devices.
5. Secure Connections: Implements encryption and authentication to protect data during transmission.

Bluetooth Versions

Bluetooth technology has evolved significantly since its inception, with newer versions offering enhanced speed, range and energy efficiency:

• Bluetooth Classic: Suitable for high data rate applications like file transfers and audio streaming.
• Bluetooth Low Energy (BLE): Designed for IoT applications with minimal power requirements.
• Bluetooth 5.0 and Beyond: Features extended range, improved speed and support for larger broadcast message capacity.

How Bluetooth Works

As mentioned, it operates in the 2.4 GHz ISM band (Industrial, Scientific, and Medical). It uses frequency hopping spread spectrum (FHSS) to reduce interference and maintain reliable communication. Devices establish a connection through a process called “pairing”. During this process, they exchange unique identification information and encryption keys before data/voice communication.

Bluetooth Applications

Following are some of the uses of bluetooth technology.

• Audio Devices: Wireless headphones, speakers, and hands-free car kits.
• File Sharing: Transferring files between mobile devices and computers.
• Health and Fitness Devices: Wearable devices like fitness trackers and heart rate monitors.
• IoT Devices: Smart home devices such as light bulbs, thermostats, and security cameras.
• Gaming: Wireless game controllers and VR headsets.
• It makes devices compatible with Bluetooth standard so that data can be exchanged wirelessly without the need of USB cables.

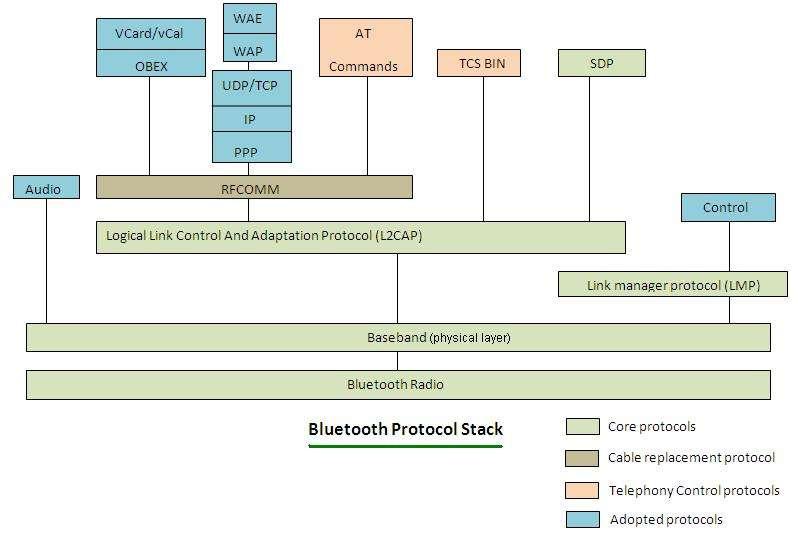

Bluetooth Protocol Stack

The Bluetooth protocol stack is a layered architecture designed to facilitate wireless communication between devices. It includes both core and optional protocols to ensure flexibility and compatibility across a wide range of applications. The stack is divided into several layers, each responsible for specific functions, from physical transmission to application level services.

At the lowest level, the Radio Layer handles the physical transmission of data using frequency-hopping spread spectrum (FHSS) within the 2.4 GHz ISM band. Above this, the Baseband Layer manages physical link setup, channel control and error correction. The Link Manager Protocol (LMP) oversees link configuration, including security features like pairing and authentication. The Host Controller Interface (HCI) provides an interface between the lower layers (hardware) and higher layers (software).

The Logical Link Control and Adaptation Protocol (L2CAP) facilitates multiplexing, segmentation, and reassembly of data for higher-level protocols. On top of L2CAP, the RFCOMM protocol emulates serial communication for legacy applications, while the Service Discovery Protocol (SDP) enables devices to discover available services. Application profiles like A2DP (Advanced Audio Distribution Profile) and HFP (Hands Free Profile) define the rules for specific use cases, ensuring interoperability between Bluetooth devices. This modular stack structure ensures that Bluetooth supports a wide variety of applications, from audio streaming to IoT communication.

Advantages of Bluetooth

Following are some of the generic benefits of bluetooth technology.

1. Wire Free: Reduces cable clutter and simplifies connections.
2. Low Cost: Affordable and widely available in consumer devices.
3. Ease of Use: Simple pairing process for seamless connectivity.
4. Energy Efficiency: Low power requirements, especially in BLE.
5. Global Standard: Ensures compatibility across diverse devices and manufacturers.

Disadvantages of Bluetooth

Following are some of the generic limitations of bluetooth.

1. Limited Range: Effective range is typically 10 to 100 meters.
2. Interference: Shares the 2.4 GHz band with other technologies, potentially causing congestion.
3. Security Concerns: Susceptible to hacking and eavesdropping if not properly secured.
4. Low Data Rate: Not suitable for high speed data intensive applications.
5. Device Compatibility: Older versions may not work with newer Bluetooth devices.

Conclusion

Bluetooth has revolutionized the way devices connect, offering wire-free communication and versatility across a range of applications. While it faces challenges like limited range and potential interference, its advantages, including low power consumption and widespread compatibility, make it indispensable in personal, professional and industrial domains.

REFERENCES

• Bluetooth SIG website: www.bluetooth.org
• IEEE 802.15.1 : www.ieee.org
