RFPlasma Antenna: Working Principle, Advantages, and Comparison
This article explores the fundamentals of plasma antennas, comparing them to traditional metal antennas. We will cover their working principles, construction, advantages, and key differences.
What is Plasma?
Plasma is often referred to as the fourth state of matter. It’s the most abundant form of matter in the visible universe, making up an estimated 99%. Plasmas conduct electricity and generate magnetic fields. For antenna applications, cold plasma is typically used. Plasma consists of freely moving electrons and ions, which are atoms that have lost electrons.
Understanding Plasma Antennas
- A plasma antenna is an RF antenna that utilizes a plasma element instead of a metal conductor.
- It uses ionized gas, contained within a tube, as the conducting element.
- When the gas is electrically charged or ionized into a plasma state, it becomes conductive, allowing for the transmission and reception of RF signals.
- Ionized gas can be a very efficient conducting element with numerous benefits.
Traditional Antenna vs. Plasma Antenna: A Detailed Comparison
Here’s a comparison showcasing the differences between traditional antennas and plasma antennas in terms of operation, construction, and advantages:
Plasma Antenna Design Example

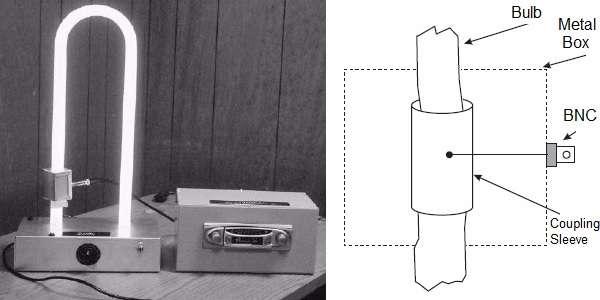

One method of designing a plasma antenna involves using it as a receiver for FM radio operating in the 88 to 108 MHz band.
The design might incorporate:
- A standard U-shaped lamp and ballast.
- A variable voltage transformer to control plasma current and density.
- A small box-sized capacitive coupler surrounding the lamp.
- A coaxial cable connecting the capacitive coupler to an FM receiver.
In this setup, the plasma inside the fluorescent lamp acts as the antenna, performing similarly to a wire of the same size. A metal sleeve around the lamp tube provides RF coupling, channeling the FM signal from the plasma column to the coaxial cable, and finally to the FM receiver.
When AC power is switched ON, the lamp illuminates and the FM radio can be tuned to listen to stations. When AC power is switched OFF, the antenna deactivates, preventing reception of FM signals.
Key Differences in a Table
| Specifications | Traditional Antenna | Plasma Antenna |
|---|---|---|
| Construction | Metal | Plasma |
| Power | Lower | Higher |
| Efficiency | Low | High |
| Weight | Higher | Lower |
| Size | Large | Small |
| Ringing Effect | Yes | No |
| Transmission/Reception | Uses RF sinusoidal signals | Uses short pulse during the time of transmission/reception |
| Noise | Higher | Lower (low collision rates among charge carriers) |
Advantages of Plasma Antennas
Here’s a summary of the benefits and advantages of using plasma antennas:
- Increased Power: Plasma antennas can handle higher power levels.
- Enhanced Bandwidth: They offer a wider bandwidth compared to traditional antennas.
- Higher Efficiency: Plasma antennas are generally more efficient.
- Less Noise: They produce less noise, leading to cleaner signal reception.
- Smaller Size: Plasma antennas can be designed to be smaller than traditional antennas.
- Lower Weight: They are typically lighter in weight, making them suitable for various applications.
