This page explores the pros and cons of the Beverage antenna. We’ll delve into its benefits and drawbacks to give you a clear understanding of its capabilities and limitations.

What is a Beverage Antenna?

Introduction:

  • A Beverage antenna is essentially a long wire stretched horizontally, positioned a fraction of a wavelength above the ground.

  • It’s fed relative to the ground, and the ground plane image of the horizontally polarized wire largely cancels out the far-field pattern.

  • These antennas are typically one wavelength or longer, which is why they’re also known as long-wire antennas.

Beverage antenna Beverage antenna

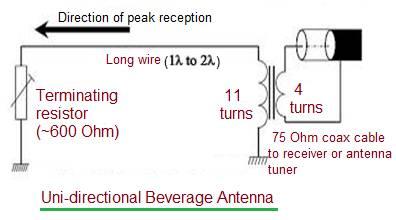

  • Figure 1 illustrates a unidirectional Beverage antenna. It consists of a horizontal wire, ranging from λ/2 to several λ in length (where λ is the wavelength).

  • This wire is suspended relatively close to the ground, typically 10 to 20 feet above the surface, and pointed towards the signal source.

  • At the end facing the signal source, the antenna is terminated with a resistor. The value of this resistor is equivalent to the characteristic impedance of the transmission line, usually between 400 and 800 Ohms.

  • The other end of the antenna is connected to the receiver through a transmission line.

  • Beverage antennas are primarily used as receiving antennas for high-frequency (HF) and medium-frequency (MF) radio bands.

Benefits or Advantages of the Beverage Antenna

Here are some key advantages of using a Beverage antenna:

  • Excellent Directivity: They are known for their ability to focus on signals from a specific direction, reducing interference from other sources.

  • Wide Bandwidth of Operation: Beverage antennas can operate effectively over a broad range of frequencies.

  • Inexpensive: They are relatively simple to construct and don’t require expensive materials, making them a cost-effective option.

Drawbacks or Disadvantages of the Beverage Antenna

Despite their benefits, Beverage antennas also have some drawbacks:

  • Large Physical Size: Their length requires a significant amount of land area, which can be a limiting factor.

  • Fixed Direction: It’s not practical to rotate a Beverage antenna to change the receiving direction. They are typically fixed in a single orientation.

  • Multiple Antennas for Wide Coverage: To achieve wide azimuth coverage, you would need to install multiple Beverage antennas, each pointed in a different direction.
