Antenna Pattern: Beam Squint and Sector Power Ratio

This page covers antenna pattern beam squint and sector power ratio, and provides a comparison between horizontal pattern beam squint and sector power ratio.

Antenna Beam Squint

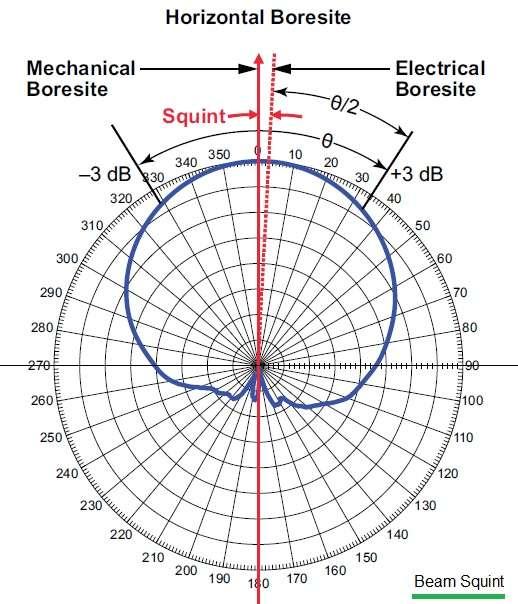

Beam squint is defined as the difference between the mechanical boresite and the electrical boresite of an antenna, as illustrated in Figure 1. The mechanical boresite is defined as being perpendicular to the antenna’s back tray, while the electrical boresite is defined as the midpoint of the 3 dB beamwidth.

Antenna Sector Power Ratio

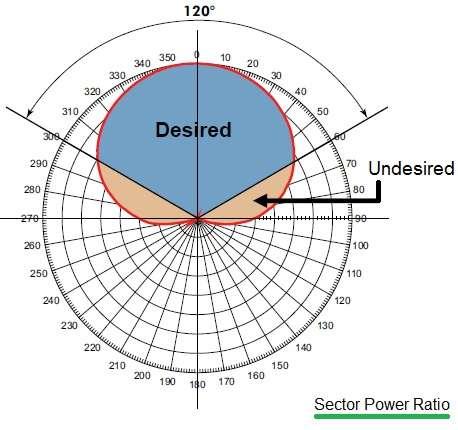

Sector Power Ratio (SPR) is another measure of an antenna’s ability to minimize interference. It represents the ratio of RF power radiated outside the sector to the RF power radiated and retained within the sector.

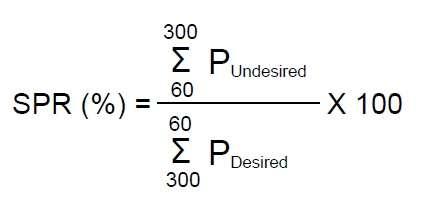

High-performing antenna designs typically achieve SPRs of 3% to 4%, whereas designs using dipole or patch elements typically yield an SPR of approximately 8%. The sector power ratio equation is shown above.
