This article breaks down the difference between antenna ports and physical antennas, concepts used in LTE (4G) and the newer 5G NR (“New Radio”) wireless standards.

Introduction:

In LTE and 5G NR, the downlink frame (from base station to user devices or UEs) can be configured to use multiple antenna ports. These ports are used by the eNB/gNB (base stations) to transmit data to UEs. The use of multiple antenna ports improves data reliability (through transmit diversity) or increases data rates (via spatial multiplexing).

Antenna Ports

  • Antenna ports relate to the physical layer of the communication system.
  • It’s a logical concept, not a physical component like an RF antenna.
  • Each antenna port has its own specific and unique channel model.
  • Dedicated reference signals (also known as pilot signals or carriers) are assigned individually to each antenna port. These signals help with channel estimation and equalization.
  • One resource grid is allocated per antenna port.
    • A resource grid is allocated per transmission direction (uplink or downlink).
    • A resource grid is allocated for a given antenna port (p), subcarrier spacing configuration and transmission direction (downlink or uplink).
  • A resource grid consists of a number of Resource Blocks (RBs) for one subframe.
    • Each RB has 12 consecutive subcarriers in the frequency domain.
    • A “Resource Element” (RE) spans 1 subcarrier in the frequency domain and 1 OFDM symbol in the time domain. Thus, an RB contains one or many REs.

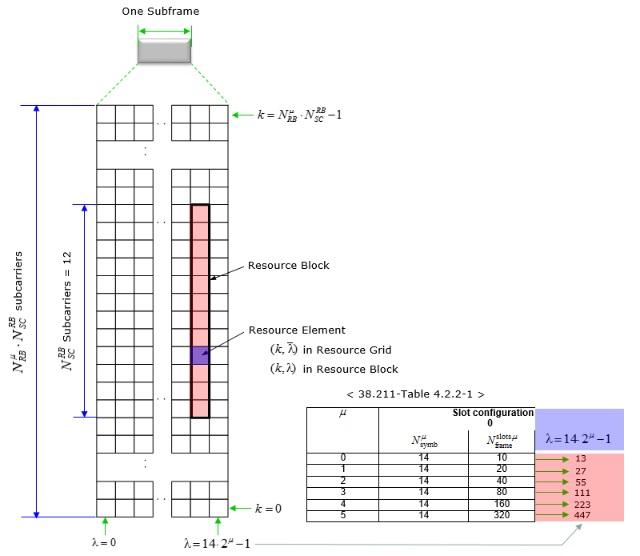

5G NR Resource Grid,Resource Block,Resource Element

  • Each element in the resource grid for antenna port (p) and subcarrier spacing configuration (μ) is called a resource element and is uniquely identified by (k,l) p,μ where k is the index in the frequency domain and “l” refers to the symbol position in the time domain relative to some reference point. Resource element (k,l) p,μ corresponds to a physical resource and the complex value a k,l p,μ .

  • Figure-1 depicts concept of resource grids, resource blocks and resource elements applied in LTE and 5G NR wireless systems.

Antenna ports vs Physical Antennas

Antenna Ports Mapping to Physical Antennas

  • As shown in the physical layer below, antenna ports are logical ports which lies before and after precoding module.
  • The number of layers in the physical layer is less than or equal to the number of antenna ports.

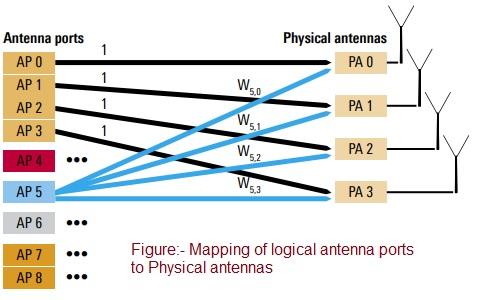

  • Figure-2 depicts the relationship (mapping) between antenna ports and physical antennas.
    • One antenna port can be mapped to a single physical antenna, or to multiple physical antennas.
    • This means modulated data symbols can be sent to one or multiple physical antennas.

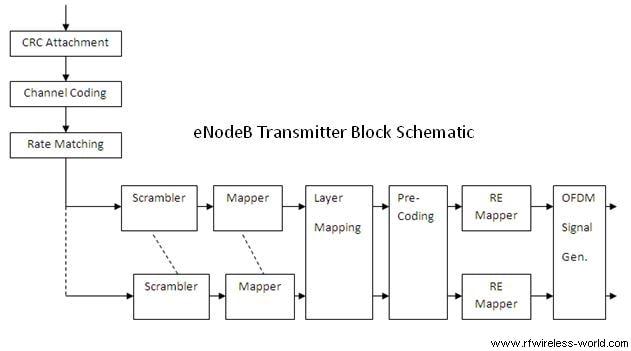

lte enodeb physical layer modules

  • As shown in the figure-3 , modulated data symbols from all the layers are combined and re-distributed to each of the antenna ports before pre-coding module.

  • After precoding algorithms are applied each of the precoded data symbols goes through separate REs (Resource Elements). This is shown by multiple RE mapper modules.

  • Independent resource grids are created separately for each of the antenna ports before the IFFT operation during OFDM signal generation.

  • Section “6.3.1.5 Precoding” in 3GPP TS 38.211 describes various Precoding matrix tables used for different combinations of (layers, antenna ports) as follows. One such table is mentioned below.

    • Single layer/Two layer/Three layer/Four layer
    • Two antenna ports/Four antenna ports

Note: Here for simplicity, “number of columns” refer to number of layers in a physical layer where as “number of rows” refer to number of antenna ports.

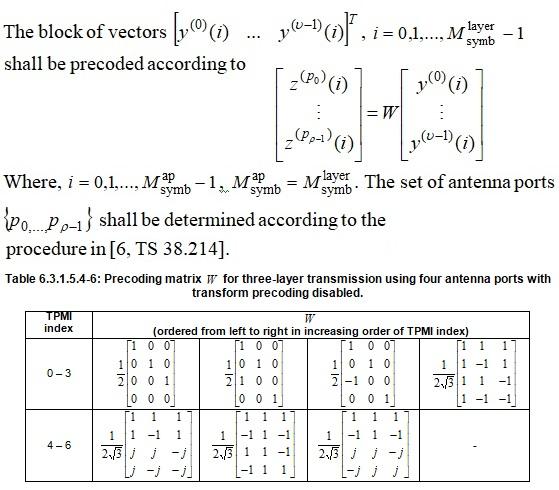

Precoding matrix for antenna ports

References:

  • 3GPP TS 36.211 LTE
  • 3GPP TS 38.211 5G NR (Physical channels and modulation)
