OFDM Transmitter Simulation in Python: WiMAX 256 FFT

This page covers OFDM Transmitter simulation as per WiMAX 256 point FFT. It includes a binary generator, QPSK modulation (mapping), OFDM symbol formation, and various plots.

Introduction

OFDM (Orthogonal Frequency Division Multiplexing) is a multicarrier transmission scheme used in WiMAX and WLAN standards. It was introduced in the IEEE 802.11a Physical layer specifications and later in the IEEE 802.16-2004 Physical layer. A variant, OFDMA, is widely used in 4G LTE systems and later versions of cellular standards.

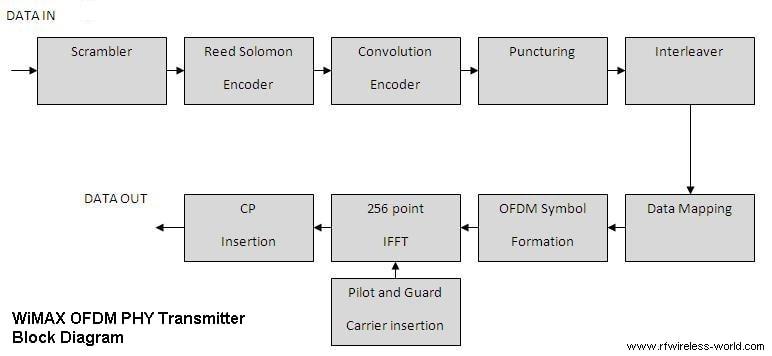

Figure: WiMAX Physical Layer Block Diagram (Transmitter Part)

As shown in the figure above, the WiMAX Physical layer consists of a transmitter and a receiver. Transmitter modules include Scrambler, FEC encoder, interleaver, data modulation, IFFT, CP insertion, etc. The receiver consists of the reverse functionalities of the transmitter modules. In addition, the receiver has time offset/frequency offset correction and channel equalization modules.

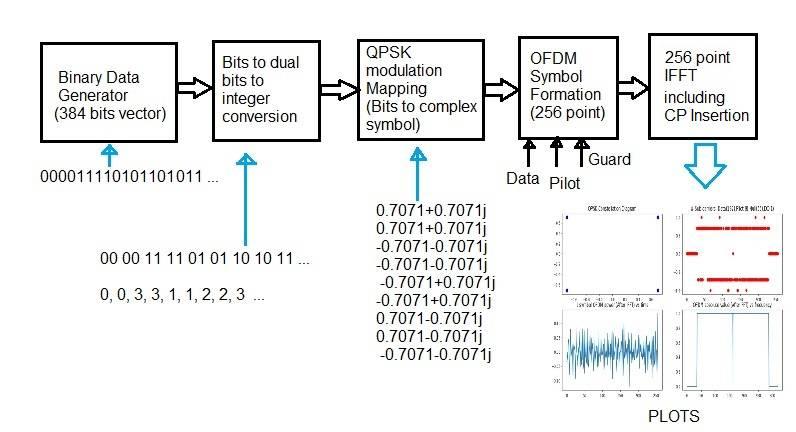

Figure: OFDM Transmitter Simulation in Python

In this Python simulation, we’ll simulate OFDM transmitter modules, including a binary generator, QPSK modulation, symbol formation, IFFT, and CP insertion. The code simulates data with a size equal to one OFDM symbol, i.e., 384 bits, which can be carried on 192 data carriers carrying QPSK complex symbols. The symbol accommodates eight pilots in each OFDM symbol. The same code can be changed to simulate a frame consisting of multiple OFDM symbols. It can be adapted to other modulation schemes by changing the value of “mu” to 4 and 6 for 16QAM and 64QAM modulation types, respectively.

OFDM Python Code

# Python Library import
import random
import numpy as np
import matplotlib.pyplot as plt
from scipy.fftpack import fft, ifft, ifftshift

# Step1 : WiMaX OFDM 256 Parameters configuration for simulation
dataCarriers = 192  # Number of data sub carriers in a symbol
mu = 2  # bits per symbol for QPSK modulation type (mu = 4 for 16QAM, mu = 6 for 64QAM)
payloadBits_per_OFDM = dataCarriers * mu  # number of payload bits per OFDM symbol   192*2 = 384 bits
input_data = ""
len1 = payloadBits_per_OFDM  # length of input data
pilot = [1, -1,  1, -1, -1, -1, 1, 1]  # 8 Nos. pilot sub carriers
pilot_pop = [41, 66, 91, 116, 142, 167, 192, 217]  # Positions of pilot sub carriers in OFDM symbol
mode = 2  # Modulation Order for QPSK
mapping_table = { 0: 0.7071 + 0.7071j, 1: - 0.7071 + 0.7071j, 2:  0.7071 - 0.7071j, 3: - 0.7071 - 0.7071j}

# Step 2 : Binary data generation for 1 symbol data carriers i.e. 384 bits
for i in range(len1):
    temp1 = str(random.randint(0, 1))
    input_data += temp1
print(input_data)

# Step-3: Converting binary vector into group of 2 bits (as per QPSK) and
# map the same as per mapping table
s1 = input_data
s2 = []
chunks = [s1[i:i+mode] for i in range(0, len(s1), mode)]
for piece in chunks:
    temp = int(piece, 2)
    s2.append(temp)
print(s2)

Q = np.zeros((192,), dtype=complex)
j = 0
for val in s2:
    Q[j] = mapping_table[val]
    j += 1
print(Q)

#  Step 4 : Arranging data sub carriers as per WiMAX OFDM symbol format
list1 = [i for i in range(29, 41)]
list2 = [i for i in range(42, 66)]
list3 = [i for i in range(67, 91)]
list4 = [i for i in range(92, 116)]
list5 = [i for i in range(117, 129)]
list6 = [i for i in range(130, 142)]
list7 = [i for i in range(143, 167)]
list8 = [i for i in range(168, 192)]
list9 = [i for i in range(193, 217)]
list10 = [i for i in range(218, 230)]
list = list1 + list2 + list3 + list4 + list5 + list6 + list7 + list8 + list9 + list10
# print(list)
dummy = [0 for element in range(256)]
print('all zeros:', dummy)

#  Step 5 : Modulation values (to data sub carriers) and pilot values (to pilot sub carriers) insertion
i = 0
for val1 in list:
    dummy[val1] = Q[i]
    i += 1
print('complex value inserted:', dummy)

i = 0
for val2 in pilot_pop:
    dummy[val2] = pilot[i]
    i += 1
print('pilot values inserted:', dummy)

# Step 6 : Inverse fourier transform for size 256 for entire symbol
N =256
OFDM_sym = ifft(dummy, N)
CP =16  # Cyclic prefix of 16 samples
CP_samples = OFDM_sym[N-CP:]  # extraction of CP samples from symbol
OFDM_sym_cp = np.append([CP_samples], [OFDM_sym])  # Concatenate CP and Symbol
x = ifftshift(OFDM_sym_cp)

# Initialise the subplot function
figure, axis = plt.subplots(2, 2)

# For Built in convolution
axis[0,0].plot(Q.real, Q.imag, 'bo')
axis[0,0].set_title("QPSK Constellation Diagram")

# For Our own function
axis[0,1].plot(dummy, 'ro')
axis[0,1].set_title("# Sub-carriers: Data(192),Pilot(8),Null(55),DC(1)")

axis[1, 0].plot(OFDM_sym)
axis[1, 0].set_title("1 symbol OFDM power (After IFFT) vs time")

Xfft = fft(OFDM_sym, 256)
axis[1, 1].plot(abs(Xfft))
axis[1, 1].set_title("OFDM absolute value (After FFT) vs frequency")

plt.show()

Output Plots

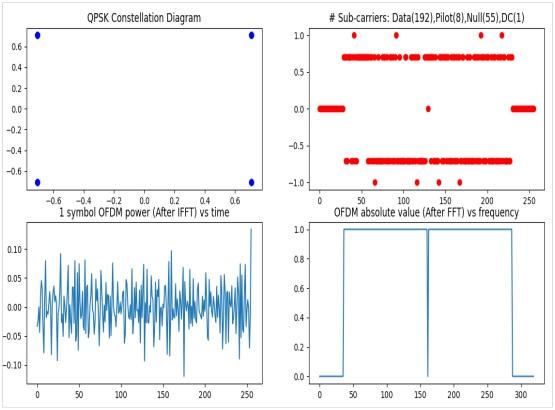

Following are the output plots of the OFDM python script as mentioned above. The plots include QPSK constellation diagram, subcarriers (data, pilots, guard, DC) with their values, symbol vs time after IFFT and symbol vs samples after FFT.

Figure: OFDM Transmitter Python Script Output Plots
