ASK Modulation in Python: Code and Explanation

This document details Amplitude Shift Keying (ASK) modulation using Python. We’ll cover the code implementation, explain the underlying principles, and show the resulting waveforms.

Introduction to ASK Modulation

ASK, or Amplitude Shift Keying, is a digital modulation technique where binary data is represented by varying the amplitude of a carrier signal. A key aspect of ASK is the encoding of binary 1s and 0s as distinct amplitude levels. A common form of ASK is ON-OFF keying (OOK), where a binary ‘1’ is represented by the presence of the carrier signal, and a binary ‘0’ by its absence.

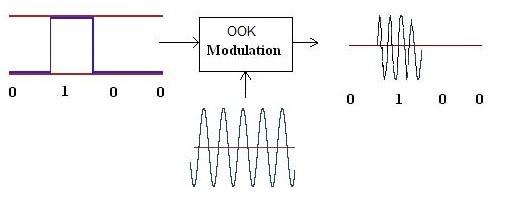

Figure 1 illustrates this concept. The Python script below implements this form of ASK. The script uses a randomly generated binary data stream (created using a separate Binarygen.py script) as the input.

Mathematically, ASK modulation can be expressed as follows:

• For Binary Logic-1:

  $sig(t) = A * sin(2 * \pi * f_c * t)$

• For Binary Logic-0:

  $sig(t) = 0$

Where:

• $A$ is the amplitude of the carrier signal.
• $f_c$ is the carrier frequency.
• $t$ is time.

Binary Data Generator Script (Binarygen.py)

The following Python script generates random binary data, serving as the baseband data for the ASK modulator.

def binary(sym, sym_len):
    import numpy as np
    rand_n = np.random.rand(sym)
    rand_n[np.where(rand_n >= 0.5)] = 1
    rand_n[np.where(rand_n <= 0.5)] = 0
    sig = np.zeros(int(sym*sym_len)) # generating symbols
    id1 = np.where(rand_n == 1)
    for i in id1[0]:
        temp = int(i*sym_len)
        sig[temp:temp+sym_len] = 1
    return sig


This script generates a random binary sequence. The `sym` parameter controls the number of symbols, and `sym_len` determines the length of each symbol. It returns a NumPy array representing the binary data stream.

## ASK Modulation Python Script

This Python script generates the ASK modulated waveform using the random binary data generated by `Binarygen.py`.

```python
# This python script generates ASK modulated waveforms
# Library files
import matplotlib.pyplot as plt
import numpy as np
from Binarygen import binary
from math import pi

plt.close('all')

# Carrier wave and binary waveform configuration parameters
Fs = 1000  # Samples per second
fc = 25    # Carrier frequency 25 Hz
T = 1      # Total simulation time in seconds
t = np.arange(0, T, 1/Fs)
x = np.sin(2*pi*fc*t)
Td = 0.1   # Bit duration
Nsamples = int(Td*Fs) # Samples in one bit duration
Nsym = int(np.floor(np.size(t)/Nsamples))

# Python code to generate binary stream of data
sig = binary(Nsym, Nsamples)

# ASK waveform generation
Xask = x * sig

# Binary waveform and ASK waveform Plots
figure, axis = plt.subplots(2)
axis[0].plot(t,sig)
axis[0].set_title("Binary digital data")
axis[1].plot(t, Xask)
axis[1].set_title("ASK modulated signal")
plt.tight_layout()
plt.show()

This script first defines the parameters for the carrier wave and the binary data. It then generates the binary data using the binary() function from Binarygen.py. The ASK modulation is achieved by multiplying the carrier wave x with the binary data sig. Finally, the script plots both the original binary data and the resulting ASK modulated waveform.

Output Plots

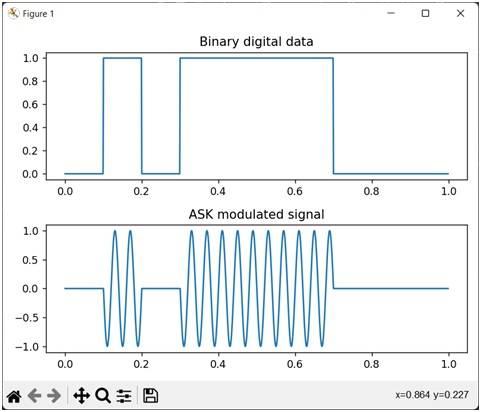

The following plots show the binary input data and the ASK modulated waveform generated by the script.

The top plot shows the random binary data, and the bottom plot shows the ASK modulated signal. Notice how the amplitude of the carrier signal corresponds to the binary data (presence of carrier for ‘1’, absence for ‘0’).
