Understanding ARM Cortex-R Architecture for Real-Time Systems

arm architecture cortex r real time embedded system processor

The ARM Cortex-R architecture is designed for real-time applications that demand high reliability and deterministic performance. These processors are commonly found in embedded systems where safety, precision, and consistent response times are paramount, such as those in automotive, industrial control, medical devices, and aerospace sectors.

Let’s delve into the key features and explore potential interview questions and answers related to the ARM architecture for the Cortex-R series.

Key Features

  • Real-time Performance: Optimized for low-latency, deterministic processing.
  • High Reliability: Designed for safety-critical applications with features like error correction and redundancy.
  • Scalability: Can be used in a range of real-time applications with varying performance requirements.

ARM Cortex-R Architecture Modules

Core Processing Unit (CPU)

  • Integer Execution Unit: Handles arithmetic and logic operations on integer data.
  • Floating Point Unit (FPU): Performs arithmetic operations on floating-point numbers, essential for applications requiring high precision.
  • Pipeline: Typically a multi-stage pipeline (e.g., 8-stage) to allow for concurrent processing of multiple instructions.

Memory Protection Unit (MPU)

  • Provides memory protection, ensuring that code and data integrity are maintained, which is crucial for safety-critical applications.

Cache System

  • L1 Cache: Includes separate instruction (I-Cache) and data (D-Cache) caches to improve processing speed by reducing memory access times.
  • Parity and ECC (Error-Correcting Code): Enhances data reliability by detecting and correcting errors in the cache.

Tightly Coupled Memory (TCM)

  • Provides low-latency access to critical code and data, ensuring deterministic performance.

Interrupt Controller

  • Nested Vectored Interrupt Controller (NVIC): Manages interrupt requests with minimal latency, supporting nested interrupts for efficient handling of real-time events.

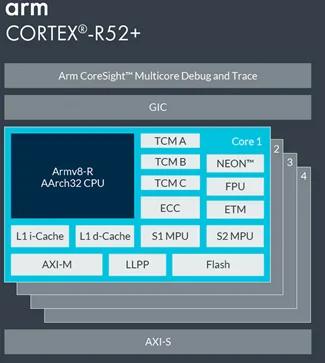

ARM Cortex-R Architecture

Memory Interface

  • Flash Memory Interface: Supports execution of code directly from flash memory, commonly used for program storage in embedded systems.
  • SRAM Interface: Provides high-speed access to on-chip SRAM.

Bus System

  • AHB (Advanced High-performance Bus): Used for high-speed, high-bandwidth connections within the processor.
  • AXI (Advanced eXtensible Interface): For connecting high-performance peripherals and memory.

Debug and Trace Units

  • CoreSight Debug: Provides comprehensive debugging capabilities, including breakpoints and watchpoints.
  • ETM (Embedded Trace Macrocell): Offers detailed tracing of program execution for debugging and performance analysis.

Timers and Counters

  • Systick Timer: A dedicated system timer for generating periodic interrupts, useful for timekeeping and task scheduling.
  • Watchdog Timer: Ensures the system can recover from unexpected states by resetting the processor if the software becomes unresponsive.

Safety and Fault Tolerance Features

  • Lock-Step Processing: Provides redundancy by running two processors in parallel and comparing their outputs to detect faults.
  • Error Correcting Code (ECC) Memory: Enhances data integrity by detecting and correcting errors in both data and code.

Peripheral Interfaces

  • GPIO (General-Purpose Input/Output): Configurable pins for digital input and output.
  • UART, SPI, I2C: Standard communication protocols for interfacing with other devices and sensors.

Low Power Features

  • Sleep Modes: Various low-power modes to reduce energy consumption when the CPU is idle.
  • Wake-up Interrupts: Allows the CPU to wake up from low-power modes in response to specific interrupts.

Variants of Cortex-R Series

  • Cortex-R4: Offers a balance between performance and efficiency, with a focus on real-time capabilities and reliability. Suitable for automotive and industrial control applications.
  • Cortex-R5: Enhances the R4 features with improved performance, error correction, and fault detection capabilities. Commonly used in safety-critical applications like automotive and medical devices.
  • Cortex-R7: Provides higher performance with more advanced error correction and redundancy features. Ideal for applications requiring both high performance and high reliability, such as aerospace and advanced automotive systems.
  • Cortex-R8: The latest in the series, offering even higher performance and more advanced features for error correction and fault tolerance. Used in the most demanding real-time and safety-critical applications.

Conclusion

The ARM Cortex-R architecture is specifically designed for real-time and safety-critical applications, offering features that ensure high reliability, deterministic performance, and fault tolerance. Its modular design allows for flexibility and scalability, making it suitable for a wide range of real-time embedded systems where consistent and predictable operation is paramount.

Interview Questions and Answers on ARM Cortex-R Architecture

Question-1: What are the key features of ARM Cortex-R processors that make them suitable for real-time applications?

Answer-1: As explained above.

Question-2: Explain the differences between ARM Cortex-R4, Cortex-R5, and Cortex-R7 processors.

Answer-2: Refer to the “Variants of Cortex-R Series” section above.

Question-3: How do ARM Cortex-R processors achieve fault tolerance and reliability in safety-critical applications?

Answer-3: ARM Cortex-R processors incorporate several features to achieve fault tolerance and reliability, which are crucial for safety-critical applications:

  1. Dual-Core Lockstep: In this configuration, two identical cores execute the same instructions simultaneously. The outputs are continuously compared, and any discrepancy between the cores triggers an error signal, allowing the system to take corrective actions.

  2. Error Correcting Code (ECC): ECC is used on caches, TCMs, and other memory interfaces to detect and correct single-bit errors and detect multi-bit errors. This ensures data integrity and reliability.

  3. Memory Protection Units (MPU): MPUs provide hardware-based memory protection, preventing erroneous access to critical memory regions and enhancing system stability.

  4. Parity Checking: Parity bits are used to detect errors in data paths and registers. This helps in identifying and correcting data corruption in real-time.

  5. Built-In Self-Test (BIST): BIST mechanisms are integrated into the processors to perform self-diagnosis during startup and runtime, ensuring the processor is functioning correctly.

  6. Safety Standards Compliance: Cortex-R processors are designed to meet various safety standards, such as ISO 26262 for automotive safety and IEC 61508 for industrial safety, providing guidelines for designing, implementing, and validating safety-critical systems.

  7. Redundancy: Redundant systems, such as dual-core lockstep, allow for continuous operation even if one core fails, ensuring system reliability.

  8. Watchdog Timers: Watchdog timers are used to monitor system operation and reset the processor if it becomes unresponsive, ensuring continuous and reliable operation.
