Understanding ARM Cortex-A Architecture: Features and Interview Questions

The ARM Cortex-A architecture is a family of central processing units (CPUs) designed for high performance in embedded and mobile devices. It is part of ARM’s Cortex series, which includes Cortex-A (Application), Cortex-R (Real-time), and Cortex-M (Microcontroller) processors. Cortex-A processors are known for their efficiency, high performance, and ability to handle complex operating systems and multitasking applications. Let’s explore key features and interview question answers on ARM Architecture for the Cortex-A series.

Key Features

• High Performance: Designed to provide high computational power for applications like smartphones, tablets, and other mobile devices.
• Energy Efficiency: Balances performance with energy consumption, making it ideal for battery-powered devices.
• Scalability: Can be scaled from single-core to multi-core configurations.
• Advanced Instruction Set: Supports the ARMv7-A and ARMv8-A instruction sets, which include a wide range of advanced instructions for performance optimization.

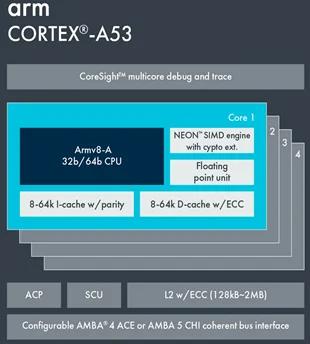

ARM Cortex-A Architecture Modules

Let’s understand the functions of modules of the ARM architecture used in the Cortex-A Series of processors.

• Core Processing Unit (CPU):

1. Integer Execution Unit: Handles arithmetic and logic operations on integer data.
2. Floating Point Unit (FPU): Performs arithmetic operations on floating-point numbers, crucial for applications requiring high precision.
3. Neon SIMD Engine: Provides Single Instruction Multiple Data (SIMD) capabilities for parallel processing, which accelerates multimedia and signal processing applications.

• Memory Management Unit (MMU):

Translates virtual addresses to physical addresses. Provides memory protection and supports features like paging and segmentation.

• Cache System:

• L1 Cache: Typically split into separate instruction (I-Cache) and data (D-Cache) caches, located closest to the CPU core.
• L2 Cache: Larger and slower than L1, shared among multiple cores in a multi-core configuration.
• L3 Cache: Even larger and shared among all cores in some high-end processors.

• Branch Prediction Unit:

Predicts the outcome of branches to improve the flow of instruction execution and reduce stalls.

• Instruction Fetch Unit:

Fetches instructions from memory and feeds them into the pipeline for decoding and execution.

• Decode Unit:

Decodes fetched instructions into a set of operations that can be executed by the CPU.

• Pipeline:

ARM Cortex-A processors typically use a multi-stage pipeline (e.g., 8-stage, 11-stage), allowing multiple instructions to be processed simultaneously at different stages of execution.

• Vector Processing Unit (VPU):

Enhances performance for tasks involving vector computations, commonly found in scientific and engineering applications.

• System Control Processor (SCP):

Manages power, clock, and reset functions for the processor.

• Advanced SIMD and Floating-Point Extension (Neon):

Provides additional instructions for parallel processing and floating-point arithmetic, improving performance for multimedia, gaming, and signal processing applications.

• Debug and Trace Units:

Offer debugging and tracing capabilities for software development and performance tuning.

• Interconnect and Bus System:

• AXI (Advanced eXtensible Interface): A high-performance, high-frequency interface used for communication between the cores and other components.
• APB (Advanced Peripheral Bus): Used for lower-speed peripheral communication.

• Security Features:

TrustZone Technology: Provides hardware isolation for secure and non-secure operations, enhancing security for applications like mobile payments and DRM (Digital Rights Management).

• Interrupt Controller:

Manages and prioritizes interrupt requests from various sources, ensuring timely responses to critical events.

• Co-Processor Interface:

Allows additional specialized processors to be added for specific tasks, such as cryptography or digital signal processing (DSP).

Conclusion

The ARM Cortex-A architecture is designed to provide a balance between high performance and energy efficiency, making it suitable for a wide range of applications from mobile devices to embedded systems. Its modular design allows for scalability and customization, enabling manufacturers to tailor processors to specific needs and performance requirements.

Interview Questions and Answers on ARM Cortex-A Architecture

Question-1: Explain the main differences between ARM Cortex-A, Cortex-R, and Cortex-M architectures.

Answer-1: The ARM Cortex series consists of three main architectures: Cortex-A, Cortex-R, and Cortex-M, each designed for different applications. Cortex-A (Application processors) are used in high-performance systems like smartphones, tablets, and embedded computing, supporting full operating systems such as Linux and Android with features like virtual memory and multi-core processing. Cortex-R (Real-time processors) are optimized for safety-critical and real-time applications like automotive, industrial automation, and medical devices, offering low-latency, high-reliability execution with features like lockstep cores for fault tolerance. Cortex-M (Microcontroller processors) are designed for low-power, embedded, and IoT applications, featuring a simplified architecture with a focus on deterministic interrupt handling and energy efficiency, often used in wearables, home automation, and industrial sensors.

Question-2: What are the key features of ARM Cortex-A processors that make them suitable for high-performance applications?

Answer-2: ARM Cortex-A processors are designed with several key features that make them suitable for high-performance applications. These include multi-core processing, an advanced instruction set, high clock speeds, virtual memory support, advanced power management features such as DVFS (Dynamic Voltage and Frequency Scaling) and power gating, rich OS compatibility, advanced security features, and high bandwidth memory interfaces.

Question-3: How does ARM Cortex-A architecture handle power efficiency while maintaining high performance?

Answer-3: ARM Cortex-A architecture balances power efficiency and high performance through several key techniques such as Dynamic Voltage and Frequency Scaling (DVFS), Big.LITTLE Architecture, Power Gating, Clock Gating, Efficient Pipeline Design, Memory Hierarchy Optimization, Advanced Fabrication Technology, and Thermal Management.
