Cellular Area Throughput Calculator and Formula

This page explains the Cellular Area Throughput Calculator and provides the Area Throughput Formula or equation.

Inputs

Outputs

Area throughput is defined as the amount of information bits that can be successfully delivered to a specific area per unit time. It’s measured in units of bit/sec/Km².

EXAMPLE:

  • INPUTS:
    • Bandwidth (B) = 20 MHz
    • D = 50 Cells/Km²
    • SE = 4.08 bits/sec/Hz
  • OUTPUT:
    • Area Throughput = 4080 bits/sec/Km²

Cellular Area Throughput Formula

The following equation or formula is used for the Cellular area throughput calculator.

Cellular Area throughput formula

Where:

  • B is Bandwidth
  • D is cell density (Number of cells per Km²)
  • SE is spectral efficiency per cell

Spectral efficiency is defined as the amount of information bits per second sent to a cell over one Hz of Bandwidth.

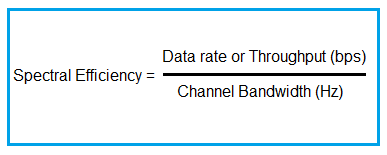

5G NR spectral efficiency formula
