This page provides information about a clock frequency to rise time calculator. It explains the formula used for clock frequency to rise time conversion and vice versa.

Clock Frequency versus Rise Time

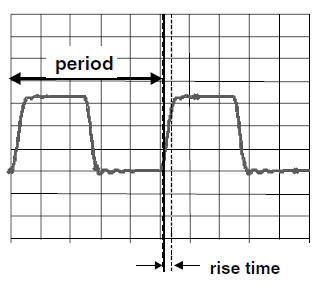

For a re-created square wave containing only a limited number of higher harmonics, bandwidth is inversely proportional to the rise time. The illustration below depicts rise time in a square waveform with approximately a 50% duty cycle.

Rise Time

BW = 0.35/RT

Where:

  • BW is the bandwidth of a signal in GHz
  • RT is the 10 to 90% rise time in nsec

Rise Time to Clock Frequency Converter

Inputs

Outputs

The calculator below converts rise time to clock frequency.

EXAMPLE:

  • INPUT: Rise time = 0.9 nsec
  • OUTPUT: Clock Frequency = 0.11 GHz

Clock Frequency to Rise Time Converter

Inputs

Outputs

EXAMPLE:

  • INPUT: Clock Frequency = 1 GHz
  • OUTPUT: Rise time = 0.1 ns

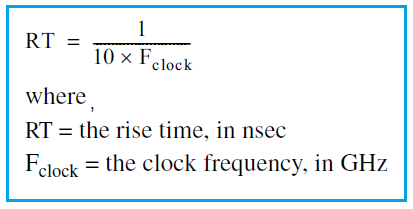

Rise Time to Clock Frequency Calculator Formula

The following equation or formula is used for Rise Time to Clock frequency conversion and vice versa.

Clock Frequency to Rise Time Calculator
