AM (Amplitude Modulation) and FM (Frequency Modulation) are two common methods for modulating analog signals in communication systems. The modulation index, also known as modulation depth or modulation ratio, is a crucial parameter in both AM and FM. It essentially tells us how much the carrier signal is affected by the modulating signal.

Let’s dive into the formulas and calculators used to determine modulation index values for both AM and FM.

AM Modulation Index (m)

In AM, the amplitude of the carrier signal changes in proportion to the amplitude of the modulating signal. The modulation index (m) is defined as the ratio of the peak amplitude of the modulating signal (Am) to the peak amplitude of the carrier signal (Ac).

The formula for AM modulation index is:

m = Am / Ac

Where:

  • m = Modulation index
  • Am = Peak amplitude of the modulating signal
  • Ac = Peak amplitude of the carrier signal

The modulation index is a unitless value and typically ranges from 0 to 1 in standard AM modulation.

  • m = 0 indicates no modulation, meaning an unmodulated carrier.
  • m = 1 indicates full modulation, where the carrier signal’s amplitude varies between zero and its maximum value.

FM Modulation Index (β)

In FM, the frequency of the carrier signal changes in proportion to the amplitude of the modulating signal. The modulation index (β) is defined as the maximum frequency deviation (Δf) divided by the frequency of the modulating signal (fm).

The formula for FM modulation index is:

β = Δf / fm

Where:

  • β = Modulation Index
  • Δf = Maximum frequency deviation (the maximum amount the carrier frequency shifts from its center frequency due to modulation)
  • fm = Frequency of the modulating signal

The modulation index (β) tells us how much the carrier frequency changes in response to variations in the modulating signal. Higher values of β mean greater frequency deviations and stronger frequency modulation.

It’s important to remember that AM and FM modulation have different forms and variations, so these formulas provide a basic understanding of the modulation indices in their simplest forms. In real-world applications, the modulation indices can vary depending on the specific modulation scheme and requirements.

AM Modulation Index Calculator and Example

Inputs

Outputs

INPUTS:

  • Modulating signal voltage (Am) = 0.5
  • Carrier Signal Voltage (Ac) = 1.25

OUTPUT:

  • AM Modulation Index (m) = 0.4

FM Modulation Index Calculator and Example

Inputs

Outputs

INPUTS:

  • Frequency Deviation (Δf) = +/- 25 KHz
  • Modulating Signal Frequency (fm) = 10 KHz

OUTPUT:

  • FM Modulation Index (β) = 2.5

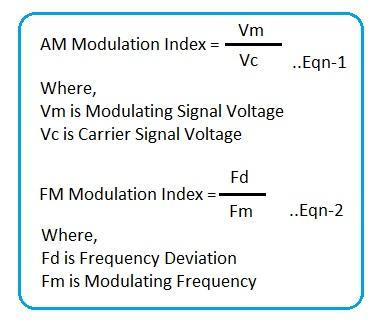

AM FM Modulation Index Formula

The following formulas are used in AM and FM analog modulation types.

modulation index calculator formula

Conclusion

In this guide, we explored the key concepts of AM and FM Modulation Index, including their respective formulas. By understanding modulation depth, we can grasp how these indices significantly impact signal transmission and quality in both Amplitude and Frequency Modulation.
