RFPhotodiode Responsivity: Formula and Calculator
Photodiode responsivity is a critical parameter for evaluating the efficiency of photodiodes in converting light into electrical current. This guide provides a clear explanation of the responsivity formula and how to calculate it. With our calculator, you can quickly and accurately determine the performance of photodiodes for various applications.
What is a Photodiode?
- A photodiode is a type of photodetector capable of converting light into either current or voltage. This effect is called the photovoltaic effect.
- A DC source is often used to apply reverse bias to the photodiode. This makes it generate more current. This mode of operation is called photoconductive mode.
- Applications of photodiodes include optical disc drives, digital cameras, and optical switches.
- Variants: PIN photodiode, Avalanche photodiode, PN Photodiode, Schottky Photodiode etc.

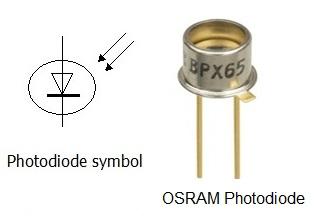

The figure depicts the symbol of a Photodiode and one such device from OSRAM.
Refer to the article on Photodiode basics and types and their working operation.
What is Photodiode Responsivity?
Definition: The responsivity of a silicon photodiode is a measure of its sensitivity to light. It is defined as the ratio of photocurrent (Ip) to incident light power P at a given wavelength.
Responsivity, Rλ = Ip / P
In other words, it is a measure of the effectiveness of converting light power into electric current. It varies with the wavelength of incident light, applied reverse bias, and temperature.
Photodiode Responsivity Calculator
The Photodiode Responsivity Calculator allows you to input the photocurrent (Ip) and incident light power (P) to calculate the responsivity (Rλ).
Example:
- INPUTS: Ip = 50 mA, P = 500 mW
- OUTPUTS: Responsivity = 0.1
Photodiode Responsivity Formula

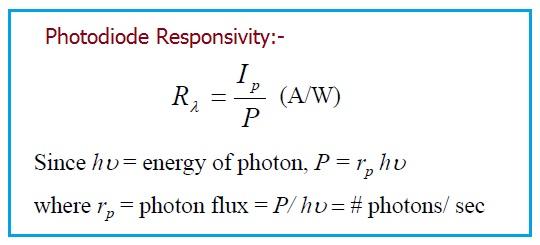

The following formula is used to calculate Photodiode Responsivity:
Conclusion
Understanding photodiode responsivity is essential for designing and optimizing optical systems. By using the formula and calculator provided, you can ensure precise measurements and enhance the performance of your photodiode applications.
