The conversion between star (Y) and delta (Δ) configurations is essential in electrical engineering, especially when analyzing and designing three-phase circuits. Understanding how to switch between these configurations simplifies the process of analyzing circuits with complex impedances, aiding both in theoretical analysis and practical applications.

This page offers a convenient calculator for Star to Delta and Delta to Star conversions, along with the required formulas, step-by-step calculation methods, and practical examples to help you better understand each process. Star to delta conversion is a technique used in electrical engineering to convert a three-phase electrical circuit from a star (Y) configuration to a delta (Δ) configuration or vice versa. This conversion is particularly useful when analyzing or simplifying complex three-phase circuits.

Let’s explore how to convert electrical circuits from delta to star and vice versa using the star to delta conversion formula, and let’s utilize our calculator with calculation examples for a deeper understanding. Branches in electrical networks are connected in various forms. The most common forms are the star form and the delta form.

In a delta connection, branches are connected in a closed loop. In a star connection, branches make a “Y” like pattern and are referred to as an “open loop.”

Star to Delta Conversion

For simplification of complex networks, one form of network can be transformed into the other form, i.e., star to delta or delta to star. It is also known as Y-Δ Transformation. It is used to simplify complex three-phase electric circuits.

Delta to Star Conversion Calculator

Inputs

Outputs

The calculator is used as a delta to star converter.

Delta to Star Calculation Example:

  • Inputs: R1 = 100 OHM, R2 = 500 OHM, R3 = 100 OHM
  • Outputs: RA = 14.28 Ohm, RB = 71.42 Ohm, RC = 71.42 Ohm

Delta to Star Conversion Formula

The following formula is used for delta to star conversion calculations.

Delta to Star Conversion Formula

Star to Delta Conversion Calculator

Inputs

Outputs

The following calculator is used as a Star to Delta converter.

Star to Delta Calculation Example:

  • Inputs: RA = 80 Ohm, RB = 120 Ohm, RC = 40 Ohm
  • Outputs: R1 = 440 Ohm, R2 = 220 Ohm, R3 = 146.66 Ohm

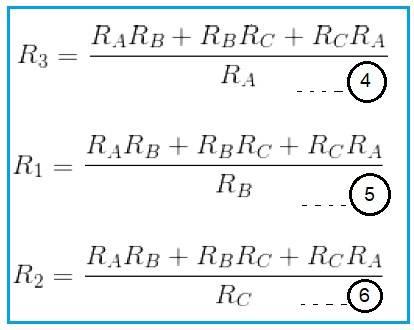

Star to Delta Conversion Formula

The following formula is used for Star to Delta conversion calculations.

Star to Delta Conversion Formula

Conclusion

Whether you’re studying electrical engineering or working on practical circuit designs, mastering Star to Delta and Delta to Star conversions can enhance your understanding of three-phase systems and impedance calculations. Use this calculator and formula guide to simplify your work and ensure accurate results. With easy-to-follow steps, you’ll be able to handle complex circuits with confidence.
