Quartz Crystal Parameter Calculator

crystal
parameter
resonance
frequency
electronic component

This page provides a Quartz Crystal Parameter calculator. It helps you determine key characteristics of a quartz crystal, including its Q-factor, series resonance frequency, parallel resonance frequency, and crystal pulling factor.

Inputs

Outputs

EXAMPLE:

INPUTS:

  • Dynamic Loss, Rs = 10.662 Ohm
  • Cs = 25.470 fF
  • Cp = 6.3 pF
  • Ls = 8.692 mH

OUTPUTS:

  • Series resonance frequency = 10.69 MHz
  • Parallel resonance frequency = 10.71 MHz
  • Q-factor = 54790.68
  • Crystal pulling factor = 247.35

Quartz Crystal Formulas/Equations

The following formulas are used in this Quartz calculator:

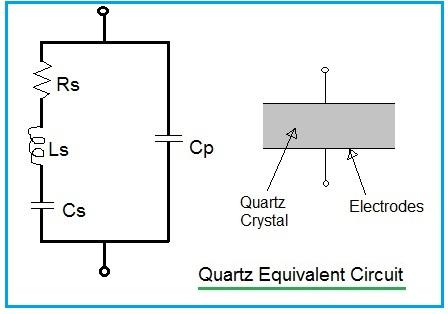

Quartz circuit

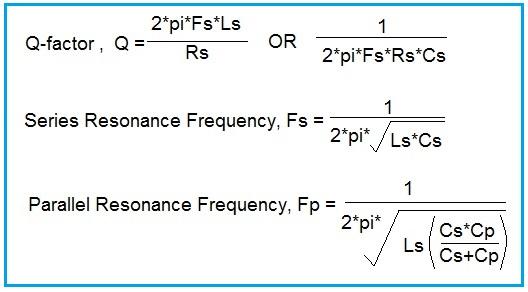

quartz formulas-Q factor,frequency
