BARITT Diode Breakdown Voltage Calculator and Formula

baritt diode
breakdown voltage
semiconductor
electric field
diode calculator

This page explains the BARITT diode breakdown voltage calculator and provides the relevant formula. It also touches upon how to calculate the electric field within a BARITT diode.

Inputs

Outputs

EXAMPLE:

  • INPUTS: Er = 11.8, N = 2.8E21 m^-3, L = 6 µm
  • OUTPUTS: Vbd = 154.36 Volts, Ebd = 2.57 x 10^7 V/meter

BARITT Diode Breakdown Voltage Formula

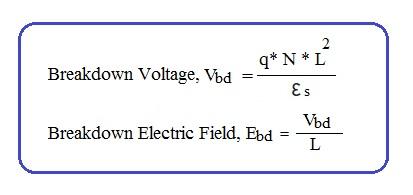

The following equation is used to calculate the BARITT diode breakdown voltage. You can also derive the breakdown electric field from the breakdown voltage.

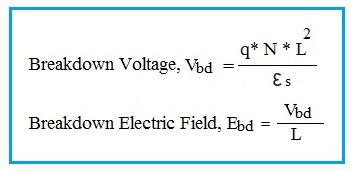

Baritt diode breakdown voltage

Where:

  • εs = ε0 x εr
  • q = 1.6 x 10^-19 (elementary charge)
  • N = Donor Concentration
  • L = Silicon Length
  • ε0 = 8.854 x 10^-12 (permittivity of free space)
  • εr = Relative dielectric constant
