Path loss calculation in wireless
Path loss is a crucial concept in wireless communication that describes the attenuation or reduction in signal strength as it travels from a transmitter to a receiver over a distance through the propagation medium. It is influenced by various factors, including distance, frequency, antenna characteristics and the surrounding environment. Accurate path loss calculations are essential for designing wireless communication systems, such as cellular networks, Wi-Fi, and satellite links. The path loss calculation can be done using various models, the most common being the Friis transmission equation and the log-distance path loss model.
The Free Space Path Loss calculator and formula are essential tools in wireless communication for several reasons.
• They provide a fundamental benchmark for estimating signal attenuation in ideal, unobstructed environments, aiding in the initial design and planning of wireless networks.
• They help determine the maximum distance over which signals can reliably propagate without additional amplification, crucial for establishing coverage areas and
optimizing transmitter power levels.
• FSPL (Free Space Path Loss) calculations are a key component in link budget analysis, enabling engineers to assess the overall gain and loss in a communication system,
ensuring reliable and efficient signal transmission.
Free Space path loss formula

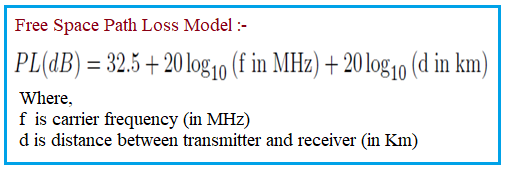

The Friis Transmission Equation is a basic model for calculating path loss and is suitable for scenarios where there is a clear line of sight (LOS) between the transmitter and receiver. Free Space path loss formula is as follows.
The other path loss models are log distance path loss model, Okumura-Hata and COST231 model, ITU-R P.529 model, Ray Tracing and Propagation models etc.
Free Space path loss calculator
Enter values as mentioned in the example to calculate free space path loss. The calculator takes frequency and distance as input parameters and calculates path loss as output.
EXAMPLE of Free space path loss calculator:
INPUTS : Frequency = 900 MHz, distance = 4 km
OUTPUTS: Path Loss = 103.62 dB
Conclusion : The Free Space Path Loss formula calculates the attenuation of a wireless signal as it propagates through an ideal, unobstructed environment.
RF Link Budget Calculator

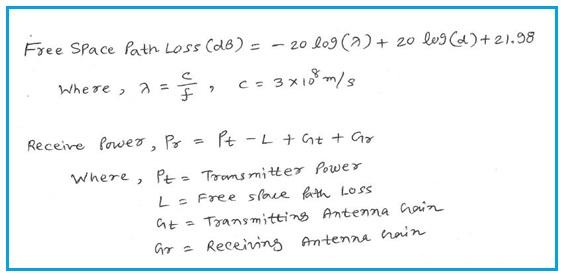

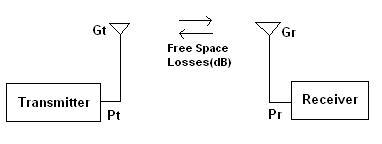

Refer RF Budget Calculator >> with image and equations mentioned below.
