SpaceX Starlink Network Architecture and System Elements

starlink satellite communication network architecture leo satellite internet access

The SpaceX Starlink network represents an ambitious project aiming to deliver global high-speed internet coverage, especially to underserved and remote areas. The architecture relies on a constellation of satellites working in concert with ground infrastructure to provide internet services.

The primary components of the Starlink network include:

  • User Segments
  • Ground Stations (Gateway Terminals)
  • Satellite Constellation

Satellite Constellation

The Starlink constellation comprises thousands of small, Low Earth Orbit (LEO) satellites. These satellites orbit at altitudes ranging from approximately 340 km to 1,200 km, distributed across multiple orbital planes. Each satellite is equipped with phased array antennas and ion thrusters for precise maneuvering and maintaining its position.

Ground Stations or Gateway Terminals

These terrestrial stations connect the Starlink satellites to the broader internet backbone. They act as relay points, converting satellite signals into internet data that can then be routed through terrestrial networks.

User Terminals

These are the end-user equipment that connects directly to the Starlink satellites. Often referred to as “Starlink dishes,” these terminals are equipped with phased array antennas. These antennas can electronically steer their beam, allowing them to maintain a stable connection with the moving satellites.

Communication between user terminals, ground stations, and the satellite constellation occurs using Ka, Ku, and V frequency bands. In the uplink (from Ground Stations to Satellite), SC-TDM (Single Carrier Time Division Multiplexing) is used, while SC-FDMA (Single Carrier Frequency Division Multiple Access) is used in the downlink (from Satellite to Ground Stations).

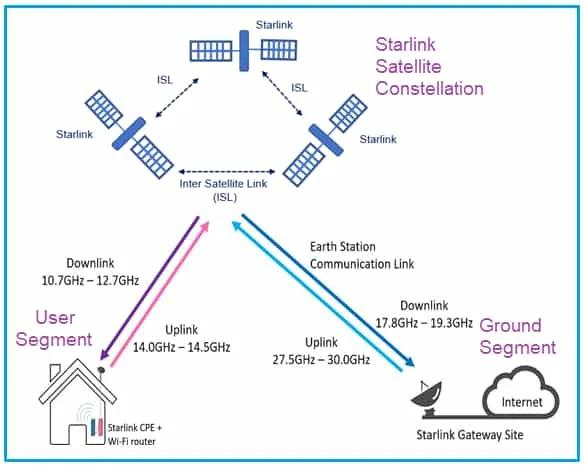

Starlink Network Architecture

Starlink satellites utilize laser communication systems to establish direct links with other satellites within the constellation. These ISLs enable data transmission across the network without relying on ground stations for relaying. This significantly enhances network efficiency and reduces latency, a concept also referred to as “Space Routing.”

Network Operations Center (NOC)

The NOC is responsible for the overall management, monitoring, and control of the entire Starlink constellation. It ensures that all satellites are functioning correctly, manages satellite orbits, and coordinates data routing across the network.

The NOC also manages the routing of data between satellites, ground stations, and user terminals. It optimizes the network’s performance and ensuring seamless connectivity.

Software and Algorithms

Advanced algorithms are employed to manage network traffic, prioritize data packets, and ensure the efficient use of available bandwidth. This includes handling handovers between satellites as they move relative to the user’s location.

AI and machine learning algorithms are leveraged to dynamically allocate network resources, optimize satellite coverage, and predict potential issues.

The Starlink architecture offers several benefits:

  1. Global Coverage: Including remote and underserved regions.
  2. Low Latency: Due to the use of LEO satellites compared to traditional GEO (Geostationary Orbit) satellites.
  3. Incremental Scaling and Continuous Improvement: The network can be expanded and upgraded over time.
  4. High-Speed Internet: Aims to provide internet speeds comparable to or better than many terrestrial broadband services.

Implementing and managing the Starlink system presents several challenges:

  1. Managing the risk of collisions and contributing to space debris.
  2. Navigating international regulations and securing spectrum rights.
  3. High initial deployment costs and ongoing maintenance.

Conclusion

The SpaceX Starlink network architecture represents a sophisticated combination of satellite technology, ground infrastructure, and advanced software systems. The system is designed to provide high-speed, low-latency internet service to users around the globe, effectively addressing the digital divide and enhancing global connectivity.
