This article describes the list of laptop parts and their functions. The parts of a laptop include the display screen, keyboard, base panel, top panel, cooling fan, RAM, hard disk, palm rest assembly, battery, hinges, speaker, optical drive, antenna, etc.

Introduction

As we know, the laptop is the most common computing device used around the world due to its portable nature. Hence, it is essential for users to understand the function of its parts. This guide helps users choose the right and best laptop parts in case of their purchase needs.

Laptop Parts

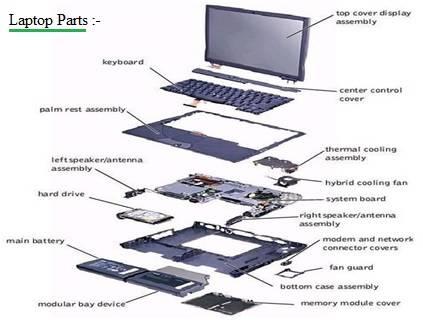

Figure 1 depicts typical laptop parts when it is open.

Laptop Parts Functions

The following table describes the functions of laptop parts.

Laptop PartsFunctional Description
Display ScreenIt functions similarly to a monitor used in a desktop PC. It is known as an output device as it is used to display output to the user in a desired format. There are different display screens available as per various brands of the laptop viz. SONY, HP, DELL, LENOVO, ACER, ASUS etc. The types include LCD, LED, VGA, XVGA, CCFL etc. The display panel can be a touch screen type or non-touch screen type. Touch screens allow users to choose from different options by simple touch with their fingers on the desired menu or icon displayed on the screen.
KeyboardIt is the most common input device used to provide commands or data to the laptop or computer. There are different types of keyboards based on the keys used and their layout arrangements. The common types are QWERTY, QWERTZ, AZERTY, and HCESAR. Various keys found on keyboards include standard typewriter keys, function keys (F1, F2, F3, …, F12), special-purpose keys (Ctrl, Del, Ins, Alt), cursor movement keys, and numeric keys.
Base PanelThe base panel provides an installation place for laptop parts which include the motherboard, RAM, hard drive, cooling fan, battery, CD drive, etc.
Top PanelThe top panel provides an installation place and support for the laptop screen.
Cooling FanIt cools down the temperature of internal components such as CPU, GPU, etc.
RAMRAM is the short form of Random Access Memory. It is the type of memory that can be accessed randomly. It is temporary memory that stores data and programs while they are being used and requires a power source to maintain its integrity. Laptop computers use DDR SDRAM types, which are double data rate synchronous dynamic random access memory (RAM) class of memory ICs. The common types of SDRAM include DDR1, DDR2, DDR3, and DDR4.
Hard DiskLaptop hard disk drives are of two common types viz. IDE (or PATA) hard drive or SATA hard drive. They can be identified based on the interface available on them.
Palm Rest AssemblyIt provides support to install the keyboard, base panel, and touchpad. It covers the entire motherboard of the laptop so that any external dust or water or things do not fall on the electronic components. It allows a place to keep the hands of the user in order to operate keyboard keys and the touchpad.
TouchpadThe touchpad or trackpad uses a tactile sensor on a specialized surface. The touchpad is a pointing device that translates the motion and position of fingers on the surface to the relative cursor position on the screen of the operating system installed in the laptop. It is the most common feature of all laptops and is used as a substitute for a mouse where desk space is limited.
BatteryIt is used to provide power backup in order to operate the laptop when AC mains power is not available. The common laptop battery voltages are 10.8V, 11.1V, or 14.8V. All the laptop batteries are rechargeable. The common laptop battery types include lithium-ion (i.e., Li-ion), nickel-cadmium (i.e., NiCad), and nickel-metal hydride (i.e., NiMH). Out of these, Li-ion is being most commonly found in the latest laptops. They are made using various combinations of cells viz. 3 cells or 4 cells etc.
HingesA hinge is a type of object that connects two solid objects so that they can be rotated with respect to each other with a certain angle between them. In laptops, hinges provide the laptop screen to be rotated with respect to the base panel. This also helps the screen completely reside or rest on the laptop base panel when not in use.
SpeakerIn general, a speaker is used to produce sound. Like external speakers, laptop speakers also allow the user to control the volume up or down as per need. It is available in power ratings of 2.6 watts or 5 watts.
Optical DriveLaptop optical drives can read/write CDs, DVDs, or Blu-Ray discs. These drives allow reading and recording of data at very high speeds. One can also use external optical drives.
AntennaThe antenna provides wireless connectivity in the laptop for various applications such as Wi-Fi internet, Bluetooth, etc. Most commonly, the laptop antenna operates either in the WLAN frequency band or Bluetooth frequency bands as per different standards or classes.

Eye Tracking Technology

Conclusion

A laptop is a complex integration of various components, each fulfilling a specific function to ensure the device operates efficiently. Key internal parts include the Central Processing Unit (CPU), which executes instructions and processes data; Random Access Memory (RAM), providing temporary storage for active tasks; storage devices like Hard Disk Drives (HDDs) or Solid-State Drives (SSDs) for data retention; and the motherboard, which interconnects all these components. External elements such as the keyboard, touchpad and display screen facilitate user interaction. Understanding these components and their roles is essential for effective usage, troubleshooting and potential upgrades, enabling users to optimize performance and address issues proactively.
