Understanding Power over Ethernet (PoE) Standards: 802.3af, 802.3at, and 802.3bt
Advertisement
Power over Ethernet (PoE) is a technology that allows network cables to carry electrical power, eliminating the need for separate power supplies for devices such as IP cameras, VoIP phones, and wireless access points. This technology has revolutionized network infrastructure by simplifying installations, reducing costs, and increasing flexibility. This article delves into the various PoE standards, their evolution, and their applications.
Let us explore IEEE 802.3 af, at and bt standards and their applications, benefits, differences with respect to various features or specifications.

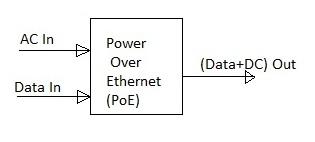

Figure 1: Concept of Power over Ethernet in which single cable carries both power and data.
Let us explore the evolution of PoE standards with their respective features. A PoE network consists of PSEs, PDs, and cables.
- PSE (Power Sourcing Equipment): Refers to devices that provide power in a PoE network. This includes PoE switches, injectors, and midspans. PSEs can be classified into two categories: Endspan (integrated into network switches) and Midspan (separate from the switch).
- PD (Powered Device): These are the devices that receive power through the Ethernet cable. Examples include IP cameras, VoIP phones, and wireless access points. PDs must be compliant with the respective PoE standard to ensure proper power negotiation and delivery.
- Cables: PoE standards require the use of Category 5 (Cat 5) or higher Ethernet cables to ensure proper power and data transmission. Higher power PoE standards (e.g., 802.3bt) may benefit from Cat 6 or Cat 6a cables to reduce power loss and ensure efficient delivery.
What is 802.3af PoE?
Following are the key features of the 802.3af PoE standard:
- Ratified in 2003, IEEE 802.3af is the first PoE standard.
- Power Delivery: Up to 15.4 watts per port.
- Voltage Range: 44 to 57 volts.
- Applications: Suitable for devices with low power requirements, such as VoIP phones and basic IP cameras.

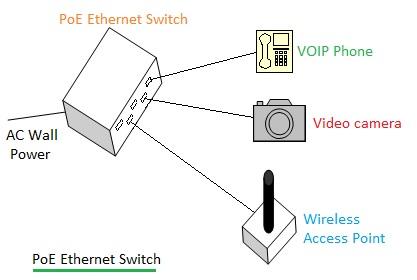

Figure 2: A PoE switch mounted with AC socket on wall.
What is 802.3at PoE+?
Following are the key features of the 802.3at PoE+ standard:
- Ratified in 2009, IEEE 802.3at is an enhancement of the 802.3af standard.
- Power Delivery: Up to 25.5 watts per port.
- Voltage Range: 50 to 57 volts.
- Applications: Supports devices with moderate power needs, including more advanced IP cameras, wireless access points, and video phones.
What is 802.3bt PoE++?
Following are the key features of the 802.3bt PoE++ type-3 and type-4 standards:
- Ratified in 2018, IEEE 802.3bt further expands the capabilities of PoE technology.
- Power Delivery:
- Type 3 (60W): Up to 60 watts per port.
- Type 4 (100W): Up to 100 watts per port.
- Voltage Range: 50 to 57 volts.
- Applications: Suitable for high-power devices like pan-tilt-zoom (PTZ) cameras, LED lighting, and building automation systems.
What is UPoE?
The term UPoE stands for Universal Power over Ethernet, which is a proprietary extension of PoE standard protocols developed by Cisco. It aims to deliver even more power than traditional IEEE 802.3af (PoE), 802.3at (PoE+) and newer IEEE 802.3bt PoE++ (Type-3 and Type-4) standards. UPoE can provide up to 60 watts of power over Ethernet, similar to 802.3bt Type 3, but was introduced by Cisco before the IEEE standardized the 802.3bt.
Applications of PoE Standard-Based Devices
Following are the applications of PoE switches:
- IP Cameras: PoE simplifies the deployment of security cameras, especially in areas where power outlets are not readily available.
- VoIP Phones: PoE ensures that VoIP phones remain powered during power outages, as they can be connected to a UPS-backed PoE switch.
- Wireless Access Points (WAPs): Facilitates the placement of access points in optimal locations for better wireless coverage without the need for nearby power sources.
- Smart Lighting and Building Automation: PoE supports the integration of LED lighting and smart building systems, allowing for centralized control and energy management.
Benefits of PoE Standards
Following are the benefits or advantages of PoE standard compliant devices:
- PoE eliminates the need for separate power supplies and outlets, allowing for more flexible device placement and easier network expansion.
- Reduces the cost of electrical installations and infrastructure by using existing network cabling for both power and data.
- PoE enables easier relocation of network devices and supports a wide range of applications, from security systems to smart building technologies.
- Centralized power management allows for better control and monitoring of connected devices, leading to increased network reliability.
Difference between 802.3af, 802.3at, and 802.3bt
Let us understand the differences between PoE standards in the table below.
Features | IEEE 802.3af PoE (Type-1) | IEEE 802.3at PoE+ (Type-2) | IEEE 802.3bt PoE++ Type-3 / Type-4 (UPoE) |
---|---|---|---|
Year ratified | 2003 | 2009 | 2018 |
Maximum power output per port | 15.4 Watts | 30 Watts | 60 Watts (Type-3), 100 Watts (Type-4) |
Power delivered to device | 12.95 Watts | 25.5 Watts | 51 Watts (Type-3), 71.3 Watts (Type-4) |
Voltage Range | 44 to 57 Volts | 50 to 57 Volts | 50 to 57 Volts (Type-3), 52 to 57 V (Type-4) |
Current | Upto 350 mA | Upto 600 mA | Upto 1.2 A (Type 3) and Upto 1.8 A (Type 4) |
Twisted pairs used | 2 pair | 2 pair | 4 pair |
Supported cables | Category 5 (Cat 5) or higher | Category 5 (Cat 5) or higher (Cat 5e or Cat 6 recommended) | Category 5e (Cat 5e) or higher (Cat 6 or Cat 6a recommended) |
Backward Compatibility | Not Applicable | Compatible with 802.3af | Compatible with 802.3af and 802.at |
Application areas | Low power devices | Medium power devices | High power devices (Type-3), Very high power devices (Type-4) |
Typical devices | VoIP phones, basic IP cameras, Sensors/Meters | Advanced IP cameras, wireless APs, Video IP phones, Alarm Systems | Type-3 : PTZ (Pan/Tilt/Zoom) cameras, LED lighting, high-performance WAPs, Video Conferencing system components Type-4 : High-power devices, industrial equipment, large displays, TVs, Laptops |
Conclusion
Power over Ethernet technology has significantly evolved, with standards such as IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) type-3 and type-4 enabling a wide range of applications across various industries. By combining power and data delivery over a single Ethernet cable, PoE simplifies network installations, reduces costs, and enhances the flexibility and reliability of networked devices. As the demand for more connected and powered devices continues to grow, PoE will remain a critical technology in modern networking infrastructure.
FAQs (Top Interview Questions and Answers)
Question 1: What are some common challenges or limitations or disadvantages of PoE technology?
Answer 1: PoE typically supports cable lengths up to 100 meters. Beyond this, signal degradation can occur. Moreover, higher power transmission can sometimes lead to increased heat generation in cables and connectors. This should be managed by limiting the number of cables (about 12 to 24) in a single bundle and maintaining spacing (at least 1 inch or 25 mm) between adjacent bundles to allow for air circulation and heat dissipation.
Question 2: How does PoE power negotiation work between a switch and a powered device?
Answer 2: PoE power negotiation involves a process called “power classification,” where the PoE switch and the powered device (PD) communicate to determine the appropriate power level. This ensures that the switch supplies the correct amount of power needed by the device. The negotiation typically uses a technique called “LLDP-MED” (Link Layer Discovery Protocol for Media Endpoint Devices) to manage and optimize power distribution.
Question 3: What future developments can we expect in PoE technology?
Answer 3: In the future, one can expect increased power efficiency, extended cable lengths, higher power levels, and integration with IoT (Internet of Things).
Question 4: How do you manage heat dissipation in PoE installations?
Answer 4: The Telecommunications Industry Association (TIA) TSB-184-A document provides detailed recommendations to be followed by engineers and technicians. It specifies detailed information on 802.3 af (PoE), 802.3 at (PoE+) and 802.3 bt (PoE++) installations. It includes maximum cables per bundle (Up to 24 for cat.5e and cat.6, up to 48 for Cat.6A), Spacing between bundles (at least 1 inch), etc. There are guidelines for vertical and horizontal runs.
