Piezoelectric Power: Harvesting Energy from Vibrations

Piezoelectric energy harvesting is a fascinating technique that allows us to convert mechanical vibrations and movements into usable electrical energy. This is achieved using materials with piezoelectric properties, which generate an electric charge when subjected to mechanical stress. Essentially, we’re taking the energy from things that are already moving and turning it into electricity.

This method is particularly useful when dealing with intermittent or low levels of ambient energy – think vibrations from machinery or the movement of a person. Piezoelectric energy harvesting can be used in various scenarios:

• Harvesting Vibrations: Embedding piezoelectric devices in structures that vibrate, like machinery, bridges, or even clothing. The vibrations cause the piezoelectric material to deform, generating electricity.
• Human Motion Harvesting: Integrating piezoelectric materials into wearable devices to capture energy from human movements like walking or bending.
• Environmental Vibrations: Deploying piezoelectric devices in areas with constant vibrations, such as cities with heavy traffic, to generate power.

How Piezoelectric Energy Harvesting Works

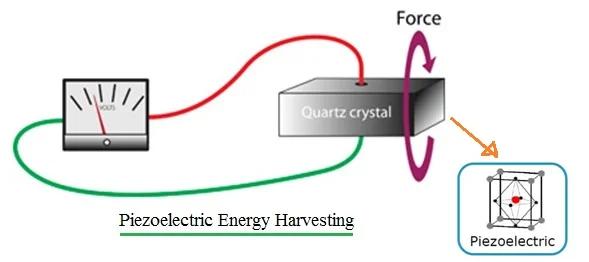

The diagram illustrates a typical piezoelectric power harvesting system. Here’s a step-by-step breakdown of how it works:

1. Piezoelectric Materials: The heart of the system is the piezoelectric material itself. These materials, like quartz crystals, ceramics, or certain polymers, generate an electric charge when subjected to mechanical stress.
2. Mechanical Stress: The energy harvesting process starts when mechanical stress – vibrations, deformations, or any mechanical force – is applied to the piezoelectric material.
3. Charge Generation: When stress is applied, the material’s crystal lattice deforms. This deformation causes charged particles within the material to move, creating an electric potential and generating an electric charge.
4. Charge Harvesting: Electrodes attached to the piezoelectric material collect the generated charge and transfer it to an external circuit.
5. AC to DC Conversion: The harvested electrical energy is typically in the form of alternating current (AC). A rectifier converts this AC into direct current (DC), which is more useful for most applications.
6. Energy Storage: The rectified DC can then be stored in a battery or capacitor for later use. This stored energy can power low-power electronic devices or charge batteries, providing a continuous and renewable power source.

Advantages of Piezoelectric Energy Harvesting

There are several benefits to using piezoelectric energy harvesting:

• Renewable and Sustainable: It provides a renewable and sustainable power source, utilizing energy that would otherwise be wasted.
• Versatile Integration: Piezoelectric materials can be integrated into a variety of structures and devices, making them versatile for different applications.
• Low Maintenance: Piezoelectric devices are often solid-state with no moving parts, resulting in low maintenance requirements.
• Durable: They can operate in harsh environments and are relatively durable, making them suitable for long-term use with minimal intervention.
• Ideal for Remote Locations: This technique is especially beneficial where traditional power sources are impractical.
• Self-Powered Devices: Piezoelectric energy harvesting enables the creation of self-powered sensors and low-power electronic devices.
• Complementary to Other Methods: It complements other energy harvesting techniques like solar or wind power, allowing for hybrid solutions and a more reliable energy supply.

Disadvantages of Piezoelectric Energy Harvesting

Despite its advantages, piezoelectric energy harvesting also has limitations:

• Low Energy Density: The energy density of piezoelectric materials is generally lower compared to other energy sources, making it more suitable for low-power applications.
• Frequency and Amplitude Sensitivity: Piezoelectric materials are sensitive to specific frequencies and mechanical amplitudes, which can limit their use.
• Dependence on Vibrations: The effectiveness depends on the availability of mechanical vibrations in the environment. Sporadic or weak vibrations may result in insufficient energy harvesting efficiency.
• Integration Complexity: Integrating piezoelectric materials into existing structures can be complex and require careful design considerations.
