Understanding Anti-Lock Braking Systems (ABS): Components, Types, and Advantages

anti-lock braking system
vehicle safety
abs
automotive technology
braking system

The Anti-lock Braking System (ABS) is a crucial safety feature in modern vehicles (cars, bikes) designed to prevent the wheels from locking up during braking. This allows the driver to maintain steering control and reduces the risk of skidding. ABS helps drivers maintain better control over their vehicles in emergency braking situations and on slippery surfaces.

ABS System Components and Working Operation

Here are the key elements and components of an ABS, along with how they work:

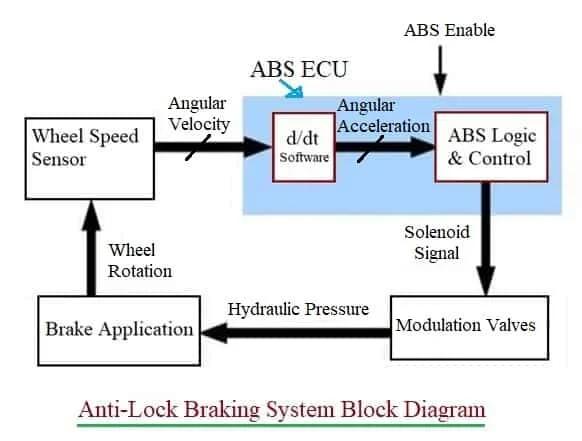

The following is a block diagram showing an example ABS system:

ABS Anti Lock Braking System Block Diagram

Image alt: ABS Anti Lock Braking System Block Diagram

  • Wheel Speed Sensors: ABS relies on wheel speed sensors, typically one at each wheel. These sensors monitor the speed of each wheel and send this information to the ABS control module or ECU. If a wheel-speed sensor signals a lock-up, the ECU or control module sends a current to the hydraulic unit. This stops the braking pressure at that wheel from rising, and keeps it constant, which allows wheel velocity to increase and slip to decrease.

  • ABS Control Module: The control module is the brain of the ABS system. It receives information from the speed sensors and makes decisions based on that data. If it detects that a wheel is about to lock up during braking, it modulates brake pressure to prevent it.

  • Electronic Control Unit (ECU): In addition to the ABS control module, some vehicles may have an Electronic Control Unit that integrates various vehicle control systems, including ABS, traction control, and stability control. The ECU helps coordinate the operation of these systems to enhance overall vehicle stability and safety. The ECU receives wheel performance data from each wheel sensor. When wheels try to lock, the ECU delivers commands to the hydraulic valves to control the brake pressure.

  • Hydraulic Control Unit (HCU) or Modulation Valve Unit: The HCU is responsible for modulating brake pressure. It adjusts the brake pressure at each wheel independently to prevent wheel lockup. It typically includes valves and a pump to control the brake fluid pressure, receiving operating signals from the ECU to apply or release the brakes under ABS conditions.

  • Pump Motor: The pump motor pressurizes the brake fluid to maintain optimal braking pressure. It is controlled by the ABS control module and helps in releasing and reapplying brake pressure rapidly.

  • Valves: The ABS system includes various valves to control the flow of brake fluid. These valves are used to release and apply brake pressure to individual wheels, preventing them from locking up.

  • Brake Lines and Hydraulic Actuators: Brake lines carry brake fluid to and from the hydraulic actuators at each wheel. The hydraulic actuators are responsible for adjusting brake pressure based on signals from the ABS control module.

Types of Anti-Lock Braking Systems

Here are the types of Anti-lock Braking Systems (ABS) based on their configuration and working operation:

  1. Four-Channel, Four-Sensor ABS: It uses a dedicated wheel speed sensor for each of the four wheels and has a separate hydraulic valve for each wheel. The system independently controls the braking force at each wheel, preventing individual wheel lockup. This allows for optimal control and stability during braking. Four-channel, four-sensor ABS is often found in more sophisticated and higher-end vehicles.

  2. Three-Channel, Three-Sensor ABS: This ABS configuration uses three wheel speed sensors for the four wheels. Typically, one sensor monitors the speed of both rear wheels together, while the other two sensors are dedicated to the front wheels individually. The system can control the braking force for each front wheel independently, but the rear wheels are controlled together. While this configuration still helps prevent wheel lockup, it may not provide as much independence and control for the rear wheels as the four-channel system. Three-channel ABS is often found in older vehicles and some budget or entry-level models.

  3. One-Channel, One-Sensor ABS: It has one valve and one speed sensor which monitors all four wheels, located in the rear axle. Pickup trucks that have rear-wheel ABS typically feature this ABS type. Like three-channel, three-sensor ABS, this system also carries the risk of one rear wheel locking, and thus lowering the effectiveness of the brakes.

10 Advantages of Anti-Lock Braking Systems

The Anti-lock Braking System (ABS) offers several benefits, contributing to improved vehicle safety and control in various driving conditions. Here are 10 advantages of ABS:

  1. ABS prevents wheel lockup during braking, allowing the driver to maintain steering control.
  2. ABS helps reduce stopping distances in certain conditions. By preventing wheel lockup, the system allows the driver to maintain effective braking without skidding, ultimately leading to shorter stopping distances.
  3. The system contributes to vehicle stability by preventing the vehicle from swerving or skidding during hard braking.
  4. ABS provides drivers with more confidence in their ability to control the vehicle during challenging braking situations.
  5. Wheel lockup can result in flat spots on tires, reducing tire effectiveness and longevity. ABS helps prevent flat spots by maintaining controlled wheel rotation during braking.
  6. On slippery surfaces such as wet or icy roads, ABS helps maintain traction by preventing wheel lockup.
  7. The ability of ABS to maintain vehicle control and stability reduces the risk of accidents.
  8. ABS operates effectively across various road conditions, including dry pavement, wet surfaces, snow, and ice.
  9. ABS often works in conjunction with other safety systems, such as traction control and electronic stability control.
  10. ABS has become a standard feature in many modern vehicles, contributing to a baseline level of safety. This can benefit motor drivers regardless of vehicle type or brand.

Conclusion

In conclusion, the Anti-lock Braking System (ABS) is a crucial safety feature in modern vehicles designed to prevent wheel lockup during braking. With its ability to adapt to various road conditions and its widespread adoption in modern vehicles, ABS significantly contributes to overall road safety by minimizing the risk of accidents.
