5G NR FR2 Band Orthomode Transducer (OMT) Manufacturers

5g nr fr2 band orthomode transducer rf component millimeter wave

This page discusses Orthomode Transducers (OMT) used in 5G NR networks, specifically for the FR2 band. It also lists vendors and manufacturers of 5G FR2 Band OMTs.

Introduction to 5G NR

5G NR (New Radio) is a radio access technology (RAT) similar to 4G LTE. It’s specified in the 3GPP 38 series. 3GPP published its initial Release 15 specifications in 2018 (Phase-1), followed by Release 16 (Phase-2). Release 17 is planned for 2021.

There are two deployment modes in 5G NR:

  • NSA (Non-Standalone) Mode: The 5G mobile subscriber uses both 4G LTE and 5G NR networks. Control messages are handled by 4G LTE, while data flow is handled by the 5G NR network.
  • SA (Standalone) Mode: The 5G user relies solely on the 5G NR network for both control and data flow.

5G NR FR1 and FR2 Bands

5G New Radio (NR) operates in two frequency ranges: FR1 (Frequency Range 1) and FR2 (Frequency Range 2). FR1 includes sub-6 GHz frequency bands, whereas FR2 includes bands from 24.25 to 52.6 GHz, including the mmWave range (up to 100 GHz).

The following table outlines the 5G NR FR2 bands:

FR2 Band DesignationUplink/Downlink RangeChannel BandwidthDuplexing
n25726.5 to 29.5 GHz50, 100, 200, 400 MHzTDD
n25824.25 to 27.5 GHz50, 100, 200, 400 MHzTDD
n25939.5 to 43.5 GHz50, 100, 200, 400 MHzTDD
n26037 to 40 GHz50, 100, 200, 400 MHzTDD
n26127.5 to 28.35 GHz50, 100, 200, 400 MHzTDD

What is an OMT (Orthomode Transducer)?

An OMT is a device that couples two linearly polarized orthogonal signals simultaneously, providing polarization isolation between transmit and receive directions.

OMT - Orthomode Transducer

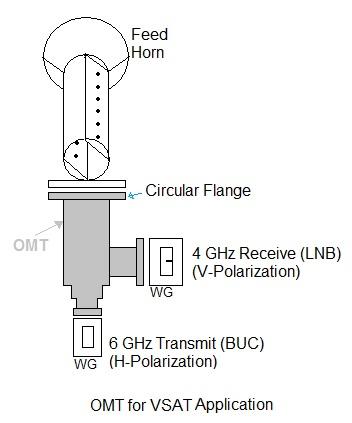

The figure above illustrates an OMT used in VSAT applications to share the same antenna for both transmission and reception. OMTs are used in various applications, including radiometers, diplexers, and dual-polarized antennas.

Consider these specifications when selecting an OMT for a 5G NR system:

  • Operating Frequency range
  • Waveguide interface
  • Return loss at ports
  • Insertion loss (Tx or Rx to antenna port)
  • Isolation between ports
  • Cross-polarization rejection

5G NR FR2 Band OMT Manufacturers | Orthomode Transducer Vendors

The table below lists manufacturers and vendors of 5G NR OMTs for FR2 bands:

5G NR OMT ManufacturersDescription
CPI International Inc.
Email: econco-sales@cpii.com
Website: cpii.com		This company manufactures OMTs in various bands, including K band and Ka band, suitable for 5G NR FR2 band applications.
Eravant, Torrance, CA 90501
Website: eravant.com
Email: support@eravant.com
Phone: 424-757-0168		Model SAT-343-28028-S1 is suitable for antennas operating from 24.25 to 52.6 GHz in the 5G FR2 band. It features 0.5 dB insertion loss, 35 dB cross-polarization rejection, 40 dB port isolation, and 15 dB return loss for the 23 GHz to 44 GHz frequency range. Visit the website for more products ranging from 8.2 to 170 GHz.
QuinStar Technology, Inc. USA
Website: quinstar.com
Email: sales@quinstar.com
Phone: +1 310.320.1111		QuinStar manufactures Orthomode transducers for various bands, including K/Ka bands, which can be used for 5G NR (New Radio) applications.
Mi-Wave St.Petersburg, FL 33702
Email: sales@miwv.com
Tel: 727-563-0034
Website: miwv.com		This company manufactures OMTs in the mmWave range. Other 5G products from Mi-Wave include 5G power amplifiers, SP12T switch (27 to 30.5 GHz), diplexers, WR-28 transmitters, 5G band attenuators, spot focus antennas, and omni-directional antennas. Visit Miwv.com for mmWave OMT RF Orthomode transducers.
Pasquali Microwave Systems, Italy
Website: pasquali-microwavesystems.com
Email: info@pasquali-ms.it
Phone: (+39) 055 710516		This company manufactures OMTs across a wide frequency range, up to 100 GHz.
