5G NR DCI Formats: A Detailed Overview

5g nr
dci format
downlink control
pusch
pdsch

This document provides a detailed explanation of 5G NR DCI (Downlink Control Information) formats, outlining their functions and the fields they utilize. We will explore formats such as 0_0, 0_1, 1_0, 1_1, 2_0, 2_1, 2_2, and 2_3.

Introduction to DCI

DCI, short for Downlink Control Information, serves as a crucial mechanism for transporting downlink control information to one or more cells using a specific RNTI (Radio Network Temporary Identifier).

The process of encoding DCI involves several key steps:

  • Information Element multiplexing
  • CRC (Cyclic Redundancy Check) attachment
  • Channel coding
  • Rate matching

The following table summarizes the functions of various DCI format types as defined in 3GPP TS 38.212 V15, published in June 2018. The function of DCI in 5G NR is conceptually similar to that in LTE, primarily used for scheduling PUSCH (Physical Uplink Shared Channel) and PDSCH (Physical Downlink Shared Channel).

5G NR DCI Format Types and Their Usage

5G NR DCI Format TypeUsage Description
Format 0_0Scheduling of PUSCH in one cell
Format 0_1Scheduling of PUSCH in one cell
Format 1_0Scheduling of PDSCH in one cell
Format 1_1Scheduling of PDSCH in one cell
Format 2_0Notifying a group of UEs (User Equipments) of the slot format.
Format 2_1Notifying a group of UEs of the PRB(s) (Physical Resource Blocks) and OFDM symbol(s) where UE may assume no transmission is intended for the UE.
Format 2_2Transmission of TPC (Transmit Power Control) commands for PUCCH (Physical Uplink Control Channel) and PUSCH.
Format 2_3Transmission of a group of TPC commands for SRS (Sounding Reference Signal) transmissions by one or more UEs.

Exploring 5G NR DCI Formats

You can further explore each specific 5G NR DCI format, including 0_0, 0_1, 1_0, 1_1, 2_0, 2_1, 2_2, and 2_3, to understand their individual fields and functionalities in greater detail.

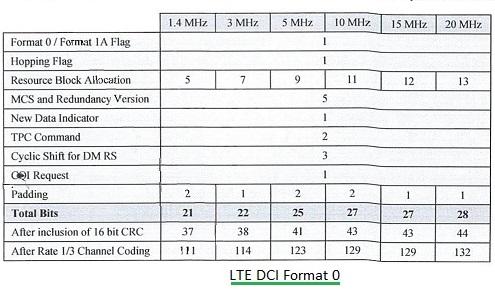

CORESET IE fields

5G NR Reference Documents

  • 3GPP TS 38.212
  • 3GPP TS 38.213
  • 3GPP TS 38.214
