10 Practical Applications of LDR Light Sensors

A Light Dependent Resistor (LDR), also known as a photoresistor, is a type of resistor whose resistance varies significantly with changes in light intensity. LDRs are used in various applications to detect light levels and adjust circuits accordingly.

LDR Structure and Working Operation

• LDRs are typically made from semiconductor materials such as cadmium sulfide (CdS) or cadmium selenide (CdSe). These materials have properties that change in response to light exposure.
• When light falls on the semiconductor material, the energy from the photons excites electrons. This increases the number of charge carriers (electrons and holes) and reduces the resistance of the material.
• In darkness or low light, the resistance is high due to fewer charge carriers. As light intensity increases, resistance decreases.

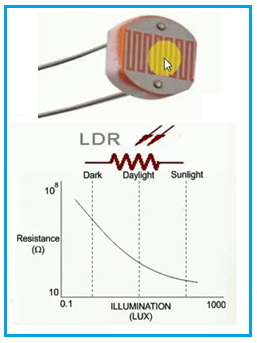

Following are the main characteristics of LDRs.

1. In the absence of light, an LDR has a very high resistance, typically in the range of megaohms ($M\Omega$).
2. When exposed to light, the resistance drops significantly, often to just a few hundred ohms.

LDR Light Sensor Applications

Following are the 10 applications of LDR light sensors, including for street lighting.

1. Automatic Street Lighting: LDRs are commonly used in automatic street lighting systems to turn lights ON at dusk and OFF at dawn. Here’s how it works:

   During the day, high ambient light causes the resistance of the LDR to drop, consequently keeping the street lights OFF. When it gets dark, the ambient light decreases, which causes the resistance of the LDR to increase. This change in resistance is detected by a control circuit that switches the street lights to the ON state.

   This use case of LDRs helps in saving a significant amount of electricity. Moreover, automation reduces the need for manual intervention and lowers maintenance costs.

2. Smart Home and Office Lighting: In smart homes and offices, LDRs can adjust the intensity of indoor lighting based on the available natural light. This ensures optimal illumination while saving energy.

3. Garden and Outdoor Lighting: LDRs are used in garden lights and other outdoor lighting systems to provide illumination based on natural light levels, providing automatic lighting for aesthetic and safety purposes in gardens and pathways.

4. Light and Exposure Meters: LDRs are used in light meters and exposure meters to measure the intensity of light and help photographers set the correct exposure.

5. Screen Brightness Adjustment: LDRs are used in laptops, smartphones, and digital clocks to adjust screen brightness based on ambient light. This improves readability and reduces eye strain.

6. Security Systems: LDRs are used in security systems to detect changes in light levels as a trigger for alarms. This feature provides a reliable method for detecting intrusions.

7. Industrial Automation: LDRs are used in industrial automation for tasks such as object detection, light intensity measurement, and process control.

8. Educational Kits and DIY Projects: LDRs are popular in educational electronics kits and DIY projects to teach basic electronics and light-sensing principles.

9. IoT Weather Stations: LDRs can be used in IoT-enabled weather stations to monitor sunlight levels, which is crucial for understanding weather patterns and forecasting.

10. Smart Farming: In smart farming, LDRs help monitor sunlight exposure for crops, ensuring they receive the right amount of light for optimal growth. This data can be used to automate shading systems or adjust the position of solar panels in solar-powered irrigation systems.

Advantages of LDRs (Photoresistors)

Following are the benefits or advantages of LDRs:

• LDRs are inexpensive and easy to use, making them suitable for a wide range of applications.
• LDRs support a wide dynamic range. Hence, they can detect a wide range of light intensities, from very dim to very bright.

Limitations of LDRs (Photoresistors)

Following are the drawbacks or limitations of LDRs:

• LDRs have a slower response time compared to photodiodes or phototransistors, making them less suitable for high-speed applications.
• Their performance can be affected by temperature changes, which may alter their resistance independently of light intensity.
• LDRs are typically sensitive to a broad spectrum of light, but their peak sensitivity is usually in the visible range. They may not be effective for detecting specific wavelengths outside this range.

Conclusion

LDRs are versatile components used primarily for detecting light and adjusting electronic circuits based on light conditions. Their simplicity, low cost, and wide dynamic range make them useful in various applications, from automatic lighting and display brightness control to educational tools and security systems. Despite their limitations in response time and temperature sensitivity, LDRs remain popular for applications where precise and high-speed light detection is not critical.
