Understanding ASK Modulation and Its Applications

Amplitude Shift Keying (ASK) is a modulation technique employed to transmit digital data across communication channels. In ASK, the amplitude of the carrier signal varies according to the digital data signal. Specifically, different amplitudes represent different binary states (0s and 1s). Let’s explore the types and key features of ASK modulation.

Types of ASK Modulation

1. Binary ASK (BASK): This uses two amplitude levels, one for binary 1 and another for binary 0.

2. Multi-level ASK (M-ASK): This method employs multiple amplitude levels, each representing different combinations of bits, to increase data rates.

Key Features

• Easy to implement and demodulate, making it suitable for low-cost applications.

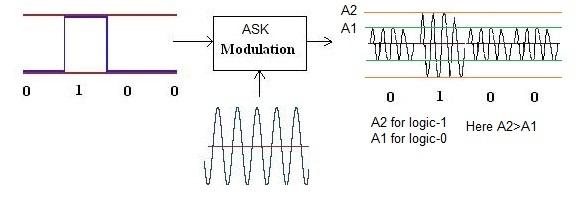

Figure 1 depicts input and output waveforms of the ASK modulation technique. The input is a digital waveform representing binary data, and the carrier waveform has a single frequency and consistent amplitude. The output is a modulated analog waveform with two amplitude levels (A1 and A2). ‘A1’ represents logic-0, whereas ‘A2’ represents logic-1.

ASK Applications

Following are the applications of ASK modulation, along with its benefits:

1. Fiber Optic Communication: Used in fiber optic communication systems to transmit data over optical fibers due to its high bandwidth and low attenuation.

2. Radio Frequency Identification (RFID): Employed in Radio Frequency Identification (RFID) systems for identification and tracking purposes, thanks to its short-range, efficient communication capabilities.

3. Remote Control Systems: Due to its benefits such as low cost implementation and reliable communication over short distances, it can be used in remote control systems for home automation, toys and other consumer electronics.

4. Telecommunication Systems: Compatible with existing telecommunication infrastructure. Moreover it offers simple modulation and demodulation processes which reduces system complexity. Hence it can be used in various telecommunication systems for data transmission over telephone lines and wireless communication.

5. Infrared (IR) Communication: Used in infrared (IR) communication systems for short-range wireless communication, such as remote controls and IR data links, due to its low power consumption.

Conclusion

ASK modulation offers simplicity and cost-effectiveness, making it suitable for a variety of applications, particularly those requiring short-range communication and low-cost implementation. It provides versatility and efficiency in diverse communication scenarios, including optical fiber communication, RFID systems, remote control systems, telecommunication, infrared communication, and modems.
