Shapefile vs. Geodatabase: Key Differences Explained

This article compares Shapefile and Geodatabase, highlighting the key differences between these two popular geospatial data formats.

Shapefile

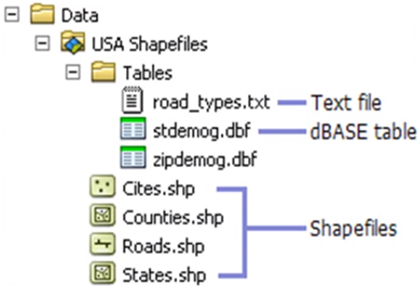

• Shapefiles are stored as a collection of files within a folder.
• Shapefiles do not support topology. This means they lack built-in mechanisms for enforcing spatial relationships and data integrity rules.
• Shapefiles typically support single-user editing, making them less suitable for collaborative environments.

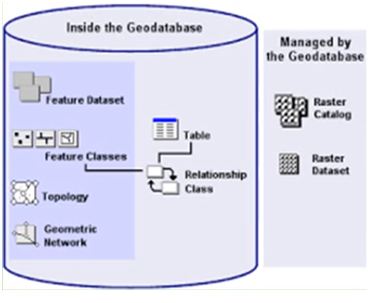

Geodatabase

• Geodatabases offer flexible storage options. They can be stored in:
  • A common file system folder (file geodatabase)
  • A Microsoft Access database (personal geodatabase - deprecated)
  • A multi-user relational DBMS such as Oracle, Microsoft SQL Server, PostgreSQL, Informix, or IBM DB2 (enterprise geodatabase)
• Geodatabases support topology. This allows you to define and enforce spatial relationships between features, check data integrity, and find errors.
• Geodatabases support advanced datasets. You can add network datasets (for routing), geometric networks, terrain datasets, parcel fabrics, and run topology on existing layers.
• Enterprise geodatabases provide robust multi-user controls, including edit permissions, access privileges, and versioning.
• Enterprise Geodatabases are the preferred choice for enterprise GIS systems requiring concurrent access and data management.
• Refer to the advantages and disadvantages of Geodatabase for a more detailed comparison.

It’s generally easy to convert shapefiles to geodatabases in ArcGIS and other GIS software.
