FBAR Filters: Advantages and Disadvantages

rf filter fbar acoustic resonator filter technology wireless communication

This article explores the benefits and drawbacks of FBAR (Film Bulk Acoustic Resonator) filters.

What is an FBAR Filter?

Introduction:

  • FBAR stands for Film Bulk Acoustic Resonator.
  • FBAR filters are created using thin-film semiconductor processes.
  • This process involves building a Metal-Aluminum Nitride-Metal sandwich structure in the air.
  • They are a type of BAW (Bulk Acoustic Wave) filter, known for superior performance compared to SAW (Surface Acoustic Wave) filters.
  • FBAR technology is also used to create duplexers, multiplexers, resonators, and other related devices.

FBAR and BAW SMR Filter Designs

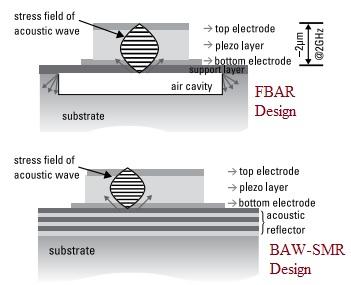

Figure 1: FBAR and BAW SMR Filter Designs

  • Figure 1 illustrates the designs of FBAR (Film Bulk Acoustic Resonator) and BAW SMR (Bulk Acoustic Wave Solidly Mounted Resonator) filters.
  • In FBAR filters, the air/crystal interface on both sides of the resonator ensures that the main mode of interest (acoustic energy) is properly contained.
  • Figure 2 (not included here) demonstrates the attenuation versus frequency curve for both FBAR and SAW filters.
  • For a comparison, refer to this article about the difference between BAW and SAW filters.

Benefits of FBAR Filters

Advantages of FBAR Filter

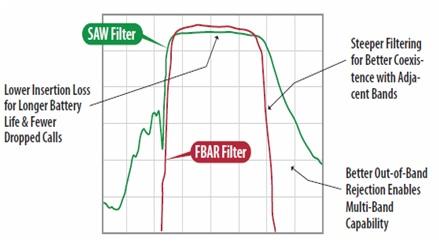

Figure 2: Advantages of FBAR Filters

Here are the key advantages of using FBAR filters:

  • Lower Insertion Loss: This results in less current consumption, which translates to longer battery life and fewer dropped calls. This is a significant advantage in mobile devices.
  • Steeper Filtering: FBAR filters provide sharper filtering characteristics, leading to better coexistence with adjacent frequency bands. This is important in crowded spectrum environments.
  • Better Out-of-Band Rejection: They offer excellent rejection of signals outside the desired frequency band, enabling multi-band capability in devices. This means a single device can operate on multiple frequency bands without interference.
  • Ultra-Small Size: FBAR filters are very compact, making them easy to integrate with other semiconductor chips in small devices.
  • Reliable Performance: They operate reliably under high power conditions and in extreme temperatures.

Drawbacks of FBAR Filters

While FBAR filters offer many advantages, they also have some limitations:

  • Thermal Management: The thermal path for heat generated within the device is critical in the design of both FBAR and BAW-SMR filters.
    • In BAW-SMR designs, heat can be conducted into the substrate, allowing it to spread.
    • However, FBAR filters have an air gap on each side of the resonator, making the thermal conduction path weaker. This means that FBAR designs require careful consideration of thermal management to prevent overheating.
