What is LM386 Audio Amplifier IC ?
The LM386 is a low voltage audio power amplifier IC (integrated circuit) commonly used in various audio amplifier applications due to its simplicity, low cost, and ease of use. It's capable of delivering modest power to drive small speakers or headphones. Let us learn LM386 Audio Amplifier Circuit and explore LM386 pin diagram and its specifications or features.
The LM386 is designed for single-ended (ground-referenced) audio output. This makes it easy to interface with speakers or headphones without the need for a complementary output stage.

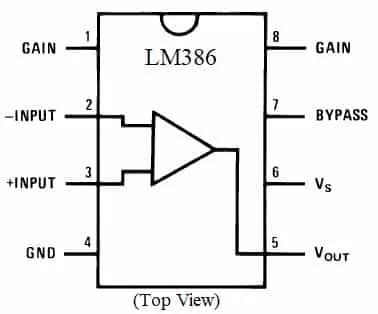

LM386 pin diagram
The following table and figure mentions pin details of LM386.
| Pin number | Description |
|---|---|
| 1 | Gain |
| 2 | Input(-) |
| 3 | Input(+) |
| 4 | Ground |
| 5 | Vout |
| 6 | Vs |
| 7 | Bypass |
| 8 | Gain |

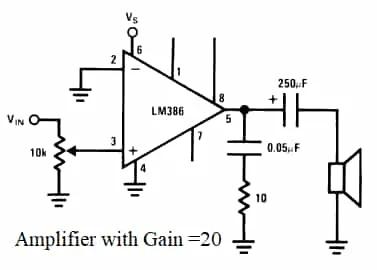

LM386 Audio Amplifier Circuit
he audio signal is typically fed into the non-inverting input pin (Pin 3) of the LM386. The gain of the amplifier can be adjusted by connecting a resistor between Pins 1 and 8, and a capacitor between Pin 1 and ground. The resistor and capacitor have not been used in the present circuit as it is designed for minimum components.
The LM386 internally amplifies the input audio signal based on the gain set by external components. The amplified signal appears at the output pin (Pin 5).
The output pin (Pin 5) is connected to the load, such as a speaker or headphones. A bypass capacitor is often connected between the output pin and ground to improve stability and reduce noise.
Applications of LM386 are as follows.
• Portable Audio Devices: The LM386 is commonly used in portable audio devices such as radios, MP3 players, and portable speakers due to its low voltage operation and small footprint.
• Intercom Systems: It's also used in intercom systems and low-power communication devices for amplifying voice signals.
• Guitar Amplifiers: The LM386 is popular among guitar enthusiasts for building simple and low-cost guitar amplifiers for practice or small performances.
• Education and Hobby Projects: Its simplicity and ease of use make the LM386 a popular choice for educational purposes and hobby projects involving audio amplification.
Conclusion : In summary, the LM386 audio amplifier IC provides a cost-effective and straightforward solution for amplifying audio signals in various applications. Its low voltage operation, internal gain control, and minimal external component requirements make it a versatile choice for hobbyists, educators, and designers seeking to incorporate audio amplification into their projects.
